ASUS Prime Z890M-Plus WiFi DDR5 mATX LGA1851 Motherboard

Sale price Rs. 25,189.00

Go kalles this summer with this vintage navy and white striped v-neck t-shirt from the Nike. Perfect for pairing with denim and white kicks for a stylish kalles vibe.

Add to Wishlist
Add to Compare
ASUS Prime Z890M-Plus WiFi DDR5 mATX LGA1851 Motherboard
ASUS Prime Z890M-Plus WiFi DDR5 mATX LGA1851 Motherboard
Sale priceRs. 25,189.00
Availability: In stock
Categories: MotherBoard
ASUS Prime Z890M-Plus WiFi DDR5 mATX LGA1851 Motherboard

ASUS Prime Z890M-Plus WiFi DDR5 mATX LGA1851 Motherboard

Rs. 25,189.00

ASUS PRIME Z890M-PLUS WIFI LGA 1851 M-ATX Motherboard

Feature

  • Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
  • Exclusive AI: AI Cooling II and AI Networking II to simplify setup and improve performance
  • Intel LGA 1851 Socket: Designed for Intel Core Ultra processors (Series 2)
  • Optimized thermal design: Large VRM heatsinks, M.2 and PCH coolers, hybrid fan header and Xpert 4 Fan with AI Cooling II
  • High-performance network: Wi-Fi 7 (802.11be) on-board with ASUS WiFi Q-Antenna and Realtek 2.5 GB Ethernet

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890M-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

PRIME Z890M-PLUS WIFI motherboard front view, floating in space.

The rear panel features one USB-C port that can transfer up to 20 Gb/s compatible devices or connect a compatible display. There is also a 10 Gb/s USB-A port alongside four USB-A 3.2 Gen 1 ports that work with 5 Gb/s devices. You can use the two USB-A 2.0 ports for keyboards, mice, and other peripherals. Built-in Wi-Fi 7 (802.11be) support and a 2.5 Gb/s Ethernet port provide you with fast connections to compatible network devices for smooth video streaming and low-latency online games. Windows 11 is required to take advantage of all this motherboard’s features.

UI showing that AI Advisor can be interacted using natural language.

Performance

AI Integration

Leveraging Artificial Intelligence, the PRIME Z890M-PLUS WIFI can boost performance with dynamic AI cooling that automatically adapts to CPU temperatures. AI Networking uses intelligent technologies to continuously optimize your wireless connectivity. You can ask the ASUS AI Adviser questions about optimizing your system’s performance and finding out more about its features.

Enhanced Power Solution

Equipped with 10+1+2+1 80A power stages with ProCool connectors, durable chokes, and Digi+ VRM control, this motherboard delivers stable power throughout the system for overclocked components.

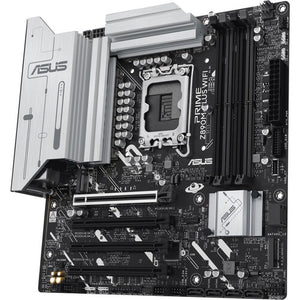

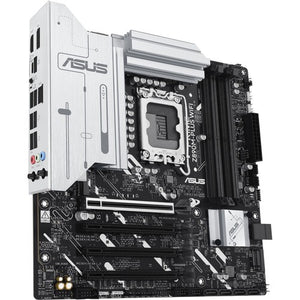

Angled top-down view of PRIME Z890M-PLUS WIFI motherboard.

DIMM Fit

This ASUS-exclusive BIOS feature analyzes individual memory modules to optimize performance and pinpoint potential issues.
Graphic marking the location of DIMMs and showing the UI of the feature DIMM Fit.

AEMP III

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve cutting-edge overclocked memory performance.
Graphic depicting RAM location.

Comprehensive Cooling

A VRM heat sink array works with the smart fan and AIO pump headers to efficiently dissipate heat for optimal performance.

Realtek Audio

Realtek 7.1 Surround Sound
The Realtek codec delivers high-quality 24-Bit / 192 kHz audio with shielded ports, premium capacitors, and dedicated PCB layers.
UI showing NPU Boost feature.

DIY Friendly

Q-Antenna

With Q-Antenna, attaching a Wi-Fi antenna to your PC is a snap. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place.

Q-LED Core

The Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.
Graphic depicting different M.2 slots on a motherboard.

BIOS FlashBack

BIOS FlashBack makes BIOS updates easy. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack port, and press a button. No CPU or memory needed.

SafeSlot

The reinforced metal SafeSlot helps to keep heavy video cards firmly installed.
Pre-Mounted I/O Shield
A pre-installed I/O shield helps to protect the rear ports while simplifying the build process.

Personalization

TurboV Core

Accessed via ASUS DriverHub, TurboV Core delivers intuitive CPU tuning that can unleash performance for overclocking enthusiasts. No need to enter the BIOS. You can modify settings directly from within Windows and apply them without needing to reboot.
UI for Fan Xpert 4 cooling controls.

ASUS GlideX

Using this app enables smooth screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, across multiple platforms.

ASUS DriverHub

Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
ASUS WiFi Q-Antenna

WiFi 7

The next-gen WiFi 77 supports 160 MHz bandwidth in the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) ensures stable connections and low latency, supporting 2.4, 5, and 6 GHz bands for enhanced coverage and throughput.

Armoury Crate

Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.
I/O ports highlighting USB 20Gbps port with DP Alt Mode

Aura Sync

Enhance your immersion with RGB lighting effects, including modes that adapt to the on-screen action. Then synchronize them with Aura Sync compatible peripherals such as keyboards, mice, and monitors.

Addressable Gen 2 RGB headers

The three addressable Gen 2 headers automatically optimize lighting effects for the number of LEDs present on compatible ARGB gear.

UEFI BIOS

The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

CPU

Chipset
Intel Z890
CPU Socket
LGA 1851

Back Panel I/O

USB
1x USB-C (USB 3.2 Gen 2x2) 1x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 2x USB-A (USB 2.0)
Thunderbolt
No
Display
1x HDMI 2.1 1x DisplayPort 1.4
Audio
3x 1/8" / 3.5 mm
Ethernet / Controller
1x Realtek 2.5Gigabit
Wi-Fi Antenna
2x Connector
Buttons
BIOS Flashback

Memory

Memory Slots
4x 288-Pin
Memory Support
DDR5 3800 MT/s
Maximum Capacity
192 GB
Channel Architecture
Dual Channel
ECC Support
Non-ECC Unbuffered

Storage Expansion

SATA
6x SATA III
Storage Slots
1x M.2 (M Key) 2280 (PCIe 5.0 x4) 2x M.2 (M Key) 2280 (PCIe 4.0 x4)
Optane Memory Support
No
RAID Support
RAID 0, 1, 5, 10

Internal I/O

Expansion Slots
1x PCIe 5.0 x16 1x PCIe 4.0 x16 (x4 mode) 2x PCIe 4.0 x16 (x1 mode)
USB
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling
2x 4-Pin CPU
Liquid Cooling
1x 4-Pin Pump
Power Connectors
1x 24-Pin Mainboard 1x 8-Pin CPU 1x 4-Pin CPU
Security
Chassis Intrusion, TPM Header
LED Header
4x RGB
Audio
1x Speaker 1x S/PDIF
Diagnostics
Clear CMOS, Flash BIOS
Add-On
1x Thunderbolt Header
Legacy
1x Serial

BIOS

ROM
256 Mb

Front Panel I/O

Front Panel I/O
AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1

Audio

Audio Codec
Realtek (7.1-Channel)
DAC
No

Wireless

Wi-Fi
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth
5.4
Module Support
1 E Key M.2
Software
OS Compatibility
Windows 11

Physical

Form Factor
Micro-ATX
Dimensions
9.6 x 9.6" / 24.4 x 24.4 cm

Packaging Info

Package Weight
3.44 lb
Box Dimensions (LxWxH)
10.9 x 10.8 x 2.8"
Weight 1 kg
Product Type

Gaming
color

Black
Brands

Asus
Chipset

Z890
Socket

LGA 1851
Memory Series

DDR5
Warranty

3 Years
EAN / UPC Code

0197105755413
