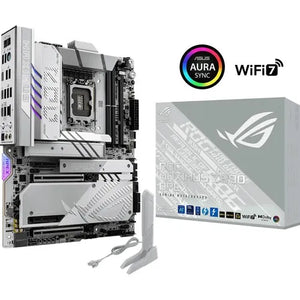

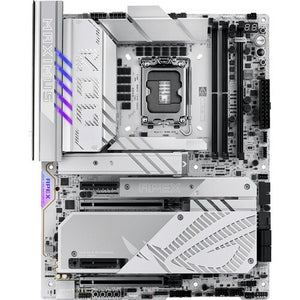

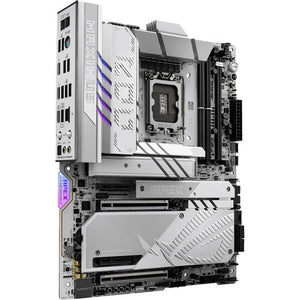

ASUS ROG Maximus Z890 Apex ATX Motherboard for Intel LGA 1851 Processors
Go kalles this summer with this vintage navy and white striped v-neck t-shirt from the Nike. Perfect for pairing with denim and white kicks for a stylish kalles vibe.
ASUS ROG Maximus Z890 Apex ATX Motherboard for Intel LGA 1851 Processors
ASUS ROG Maximus Z890 Apex ATX Motherboard for Intel LGA 1851 Processors
- Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel LGA 1851 Socket: Supports Intel Core Ultra Processors (series 2)
- Exclusive AI Technologies: ASUS AI Advisor, ASUS-exclusive AI Overclocking, AI Cooling II, and AI Networking II to simplify setup and improve performance
- Exclusive Overclocking & Memory Technologies: NPU Boost, DIMM Fit, DIMM Flex and AEMP III to simplify setup and improve performance
- Robust Power Solution: 22(110A)+2(90A)+1(90A)+2(80A) power stages with ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
- Optimized Thermal Design: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and connected with a heatpipe
- Latest M.2 Support: Three onboard PCIe 5.0 M.2 slots and one PCIe 4.0 M.2 slot onboard with ROG M.2 Power Boosts, and two PCIe 4.0 M.2 slots on an ROG DIMM.2 card, all with substantial cooling solutions
- Abundant Connectivity: Dual Thunderbolt 4 USB Type-C ports, one USB 20Gbps Type-C port, USB 20Gbps Type-C front-panel connector with Quick Charge 4+ up to 60W and USB Wattage Watcher, USB 10Gbps Type-C front-panel connector, four additional USB 10Gbps ports, two PCIe 5.0 x16 SafeSlots
- High-Performance Networking: On-board Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna, Realtek 5 Gb Ethernet
- DIY Friendly Design: PCIe Slot Q-Release Slim, new M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, BIOS Q-Dashboard, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack button, Clear CMOS button and pre-mounted I/O shield
Install up to three M.2 PCIe 5.0 SSDs alongside one PCIe 4.0 drive. Two more M.2 PCIe 4.0 x4 SSDs may be added using the included DIMM.2 adapter, and there are four SATA III connectors, providing you with plenty of space to store your games library, applications, and multimedia files. The two DDR5 DIMM slots support up to 96GB. With two PCIe 5.0 x16 and two PCIe 4.0 x4 slots, you can install powerful graphics cards and other compatible expansions.
The rear panel features two Thunderbolt 4 ports that can transfer up to 40 Gb/s with compatible devices or connect a USB-C compatible 8K displays. There is also a 20 Gb/s compatible USB-C port alongside four 10 Gb/s USB-A ports and four USB-A 3.2 Gen 1 ports that work with 5 Gb/s compatible devices. Internal headers allow you to connect front panel 20 Gb/s and 10 Gb/s USB-C ports. Built-in Wi-Fi 7 (802.11be) support and a 5 Gb/s Ethernet port provide you with connections to compatible network devices for smooth video streaming and low-latency online games. Windows 11 is required to take advantage of all this motherboard’s features.
Performance
AI Equipped
Leveraging Artificial Intelligence, the ROG MAXIMUS Z890 APEX can boost performance with automatic AI overclocking and cooling, enhancing your games and productivity without compromising thermal capabilities. You can ask the ASUS AI Adviser questions about optimizing your system’s performance and finding out more about its features.
Easy Overclocking
The ROG Overclocker’s Toolkit includes hardware-level controls that can enhance your overclocking experience. They include Safe Boot, BCLK, and Retry buttons, along with RSVD, LN2 Mode, Slow Mode, and BIOS switches. There are also Probeit measurement points for advanced tuning. A differential-sensing circuit and delicate IC simplify overclocking and tuning by allowing you to accurately track voltages. Specialized circuitry detects when condensation occurs on the back of the board.
Enhanced Power Solution
Equipped with 22(110A)+1(90A)+2(90A)+2(80A) power stages with ProCool II connectors, MicroFine alloy chokes, and durable capacitors, this motherboard delivers stable power throughout the entire motherboard, maintaining electrical volume whether you are performing simple tasks or operating at full power during resource-demanding processes.
M.2 PowerBoost
ROG M.2 PowerBoost technology helps ensure that every onboard M.2 device operates simultaneously at optimal performance.
DIMM Fit
This ASUS-exclusive BIOS feature analyzes individual memory modules to optimize performance and pinpoint potential issues.
DIMM Flex
DIMM Flex employs specialized circuitry that can boost performance or address potential stability issues, depending on temperature readings.
AEMP III
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.
Comprehensive Cooling
A VRM heat sink works with highly conductive thermal pads and a chipset heat sink to efficiently dissipate heat. M.2 heat sinks and dedicated backplates help to ensure optimal SSD performance during sustained workloads. The DIMM.2 card also includes a hefty heat sink.
Gaming Audio
SupremeFX 7.1 Surround Sound
The ROG SupremeFX ALC4080 codec delivers studio quality 32-bit, 384 kHz audio across all channels. The front panel audio output is channeled through an integrated Savitech SV3H712 amplifier, delivering near imperceptible distortion levels at -90dB THD+N and a signal-to-noise ratio of 110 dB. Audio line shielding and an audio cover reduces electromagnetic interference.
Dolby Atmos
With the addition of height channels, Dolby Atmos surround sound creates an immersive audio experiences by providing the sensation of sound coming from above, below, and around the listener.
DIY Friendly
Easy M.2 Installation
ASUS M.2 Q-Release, Q-Slide and Q-Latch technologies allow you to quickly install or remove M.2 SSDs without the need for tools or screws.
PCIe Slot Q-Release Slim
With PCIe Slot Q-Release Slim, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. Users no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.
Q-Antenna
With Q-Antenna, attaching a Wi-Fi antenna to your PC is a snap. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place.
Q-LED
The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components are functioning normally during startup. It can also alert them when memory modules have not been properly installed.
Troubleshooting
A built-in start button and Q-Code LEDs help you quickly identify problems.
Clear CMOS and BIOS FlashBack
Clear the CMOS at the touch of a button to help remove data corruption from the chip. BIOS FlashBack makes BIOS updates easy. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack port, and press a button. No CPU or memory needed.
Software Utilities
ASUS DriverHub
Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
TurboV Core
Accessed via ASUS DriverHub, TurboV Core delivers intuitive CPU tuning that can unleash performance for overclocking enthusiasts. No need to enter the BIOS. You can modify settings directly from within Windows and apply them without needing to reboot.
Thunderbolt Share
Enhance your multitasking by connecting up to two Thunderbolt compatible computers together. Seamlessly share screens, keyboards, mice, storage and files between them with the speed of Thunderbolt technology.
ASUS GlideX
Using this app enables smooth screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, across multiple platforms.
HWINFO
This comprehensive diagnostic tool provides detailed information about hardware components and real-time system monitoring.
AIDA64 Extreme
The AIDA64 Extreme tool provides detailed information about the hardware components and software, performs benchmark tests, and helps prevent possible hardware issues. A 60-day trial subscription is included.
Armoury Crate
Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.
Play in Style
Aura Sync
Enhance your immersion with RGB lighting effects, including modes that adapt to the on-screen action. Then synchronize them with Aura Sync compatible peripherals such as keyboards, mice, and monitors.
Addressable Gen 2 RGB headers
The three addressable Gen 2 headers automatically optimize lighting effects for the number of LEDs present on compatible ARGB gear.
| Weight | 2 kg |
|---|---|
| Product Type |
Gaming |
| color |
White |
| Brands |
Asus |
| Chipset |
Z890 |
| Socket |
LGA 1851 |
| Memory Series |
DDR5 |
| Warranty |
3 Years |
