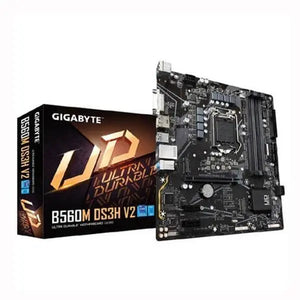

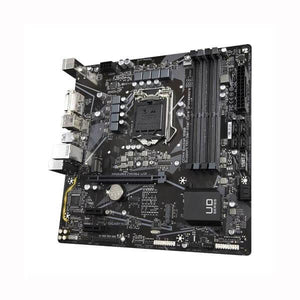

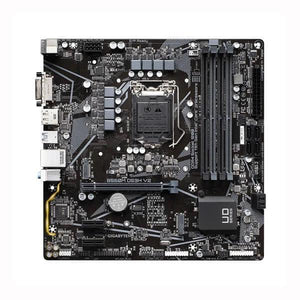

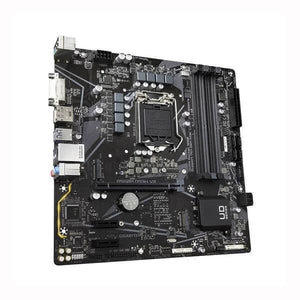

Gigabyte B560M DS3H V2 LGA1200 Micro-ATX Motherboard for Intel 10th & 11th Gen Processors

Sale price Rs. 11,989.00

Go kalles this summer with this vintage navy and white striped v-neck t-shirt from the Nike. Perfect for pairing with denim and white kicks for a stylish kalles vibe.

Add to Wishlist
Add to Compare
Gigabyte B560M DS3H V2 LGA1200 Micro-ATX Motherboard for Intel 10th & 11th Gen Processors
Gigabyte B560M DS3H V2 LGA1200 Micro-ATX Motherboard for Intel 10th & 11th Gen Processors
Sale priceRs. 11,989.00
Availability: In stock
Categories: MotherBoard
Gigabyte B560M DS3H V2 LGA1200 Micro-ATX Motherboard for Intel 10th & 11th Gen Processors

Gigabyte B560M DS3H V2 LGA1200 Micro-ATX Motherboard for Intel 10th & 11th Gen Processors

Rs. 11,989.00

Gigabyte B560M DS3H V2 Intel Motherboard

Gigabyte B560M DS3H M-ATX Form Factor Motherboard, Features Unlocked Memory Support, All new 11th Gen Rocket Lake CPU Support, DDR4 5333 Mhz and Upto 128GB Memory Support, Includes 8118 Gaming Lan and Realtek HD Audio

Features

Intel® B560 Ultra Durable Motherboard with Direct 6+2 Phases Digital VRM, Full PCIe 4.0* Design, PCIe 4.0 M.2, Dual Band 802.11ac WIFI, GIGABYTE 8118 Gaming LAN, 8-ch HD Audio with Audio Caps, USB TYPE-C®, RGB FUSION 2.0, Q-Flash Plus
  • B560M DS3H V2 Supports 11th and 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0* x4 M.2
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • USB 3.2 Gen1 Type-C® for Fast and Versatile Connections
  • High Quality Audio Capacitors and Audio Noise Guard
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
CPU LGA1200 package:
  • 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
  • 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
  • L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)
Chipset Intel® B560 Express Chipset
Memory
  • 11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
  • 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules
  • 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules
  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
  • 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter.
  • 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.) Support for up to 3 displays at the same time
Audio
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.
LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots
  • 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note)
  • 2 x PCI Express x1 slots (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
(Note) Supported by 11th Generation processors only.
Storage Interface CPU:
  • 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note)
Chipset:
  • 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)
  • 6 x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready * System acceleration with Intel® Optane™ Memory can only be enabled on the M2P_CPU connector and with an 11th Generation Intel® processor installed. (Note) Supported by 11th Generation processors only.
USB Chipset:
  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
  • 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  • 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
  • 2 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 3 x system fan headers
  • 1 x addressable LED strip header 1 x RGB LED strip header
  • 6 x SATA 6Gb/s connectors
  • 2 x M.2 Socket 3 connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x serial port header
  • 1 x parallel port header
  • 1 x Clear CMOS jumper
  • 1 x Q-Flash Plus button
  • ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Back Panel Connectors
  • 2 x USB 2.0/1.1 ports
  • 1 x PS/2 keyboard/mouse port
  • 1 x DVI-D port
  • 1 x DisplayPort 1 x HDMI port
  • 3 x USB 3.2 Gen 1 ports
  • 1 x USB Type-C® port, with USB 3.2 Gen 1 support
  • 1 x RJ-45 port
  • 3 x audio jacks
I/O Controller
  • iTE® I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Fan fail warning
  • Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
Bundle Software
  • Norton® Internet Security (OEM version)
  • Realtek® 8118 Gaming LAN Bandwidth Control Utility
Operating System
  • Support for Windows 10 64-bit
Form Factor
  • Micro ATX Form Factor; 24.4cm x 24.4cm
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
Weight 1 kg
Dimensions 24 × 24 × 5 cm
Brands

Gigabyte
Chipset

B560
Memory Series

DDR4
Compatibality

PC
Socket

LGA 1200
Platform

Intel
Motherboard Series

Gigabyte Ultra Durable
Warranty

3 Years
EAN / UPC Code

4719331823719
