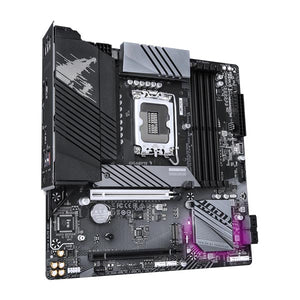

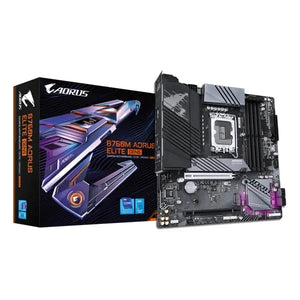

Gigabyte B760M AORUS Elite Gen5 LGA1700 Gaming Motherboard
Gigabyte B760M AORUS ELITE GEN5 LGA1700 Motherboard
Feature
- PCIe Gen5 Performance : Perfect Sync to Win
- Supports Intel® Core™ 14th/ 13th /12th processors
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- EZ-Latch : PCIe 5.0×16 Slot with Quick Release Design
- EZ-Latch Plus : M.2 Connectors with Quick Release & Screwless Design
- PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
- Unparalleled Performance : Twin 12*+1+1 Phases Hybrid VRM Solution
- Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support
- Fast Networks : 2.5GbE
- Extended Connectivity : Rear USB-C® 20Gb/s, Front USB-C® 10Gb/s, DP, HDMI
- Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
- Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
- High-Res Audio : ALC1220 & High-End Audio Capacitors
PCIe Gen5
Express to PCIE5 Performance
The new GIGABYTE B760 motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement.
Cooling
Fully Covered Thermal Design
High coverage MOSFET and integrated molding Heatsinks to improve thermal efficiency with better airflow and heat exchange.
4X Large Surface
Increased surface area up to 4X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.
Real One-piece Build
TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors’ multi-piece design.
Multi-Cut Design
TMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance.
3% Cooler by implementing
2X Copper PCB Design
By adopting 2X copper on PCB inner layer, it lowers the components’ temperature at least 3% by turning the PCB into a super thin PCB size copper heatsink to dissipate the heat from the components effectively, due to it’s high thermal conductivity and lower impedance.
Smart Fan 6
Superior cooling performance and whisper-quiet operation for your gaming rig.
Ultra Durable™
Born from Ultra Durable™
Technology embodies our commitment to excellence, providing gamers with a platform that’s not only powerful but also built for longevity and reliability. GIGABYTE motherboards are engineered to endure and excel.
Memory
Unlock DDR5 Performance
GIGABYTE is offering a tested and proven platform with extreme memory performance boost.
Optimal VRM Design
Optimal Power
Maximum Turbo Boost and overclocking performance
Twin Hybrid VRM Design
To ensure maximum Turbo Boost and overclocking performance of Intel’s new generation CPU, AORUS series motherboard equip the best VRM design ever built with the highest quality components.
| CPU | LGA1700 socket: Support for 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors |
| Chipset | Intel® B760 Express Chipset |
| Memory | 14th/13th Gen Core™ i9/i7: DDR5 5600/5200/4800/4400 MT/s<br>13th Gen Core™ i5/i3 & 12th Gen Core™ Pentium®/Celeron®: DDR5 4800/4400 MT/s<br>4 x DDR5 DIMM sockets, up to 256 GB system memory |
| Onboard Graphics | Integrated Intel® HD Graphics<br>- 1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3)<br>- 1 x DisplayPort (4096x2304@60Hz, DP 1.2, HDCP 2.3) |
| Audio | Realtek® Audio CODEC, HD Audio (2/4/5.1/7.1-channel), S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | CPU: 1 x PCI Express x16 (PCIe 5.0 x16)<br>Chipset: 1 x PCI Express x16 (PCIe 4.0 x4) |
| Storage Interface | CPU: 1 x M.2 (PCIe 4.0 x4/x2 SSD)<br>Chipset: 1 x M.2 (PCIe 4.0 x4/x2 SSD), 4 x SATA 6Gb/s, RAID 0/1/5/10 |
| USB | Chipset: 1 x USB Type-C® (USB 3.2 Gen 2x2)<br>1 x USB Type-C® (USB 3.2 Gen 2)<br>1 x USB 3.2 Gen 2 Type-A<br>1 x USB 3.2 Gen 1<br>8 x USB 2.0/1.1 (via hubs) |
| Internal I/O Connectors | Includes 24-pin ATX, 8-pin/4-pin ATX 12V, CPU/system fan headers, RGB LED headers, SATA, USB Type-C®, Thunderbolt™ add-in card connectors |
| Back Panel Connectors | USB ports, HDMI, DisplayPort, RJ-45, optical S/PDIF, audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed detection/control, Water cooling flow rate detection |
| BIOS | 1 x 256 Mbit flash, AMI UEFI BIOS |
| Unique Features | GIGABYTE Control Center, Q-Flash/Plus |
| Bundled Software | Norton® Internet Security, LAN bandwidth management |
| Operating System | Windows 11/10 64-bit |
| Form Factor | Micro ATX Form Factor (24.4cm x 24.4cm) |
| Weight | 1 kg |
|---|---|
| Product Type |
Gaming |
| color |
Black |
| Brands |
Gigabyte |
| Memory Series |
DDR5 |
| Motherboard Size |
mATX |
| Platform |
Intel |
| Socket |
LGA 1700 |
| Warranty |
3 Years |
