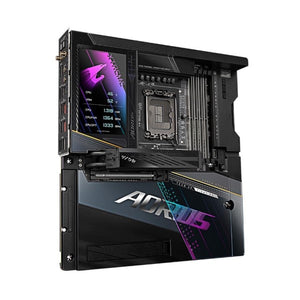

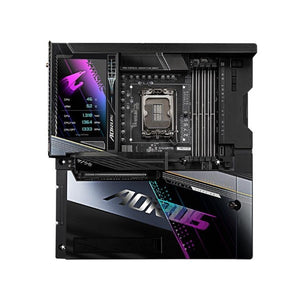

Gigabyte Z790 AORUS XTREME X DDR5 WiFi LGA 1700 E-ATX Intel Motherboard (12th, 13th & 14th Gen Supported)
Go kalles this summer with this vintage navy and white striped v-neck t-shirt from the Nike. Perfect for pairing with denim and white kicks for a stylish kalles vibe.
Gigabyte Z790 AORUS XTREME X DDR5 WiFi LGA 1700 E-ATX Intel Motherboard (12th, 13th & 14th Gen Supported)
Gigabyte Z790 AORUS XTREME X DDR5 WiFi LGA 1700 E-ATX Intel Motherboard (12th, 13th & 14th Gen Supported)
GIGABYTE Z790 AORUS XTREME X LGA 1700(14th,13th,12th Gen) Intel Z790 X EATX Motherboard with DDR5, 5 M.2, PCIe 5.0, USB 3.2 Type-C, Wi-Fi 7, 10GbE LAN, Q-Flash Plus, EZ-Latch Plus
Features
- Supports Intel® Core™ 14th and 13th processors
- Digital twin 24+1+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with XMP 3.0 memory module support
- PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
- EZ-Latch Click：M.2 heatsinks with screwless design
- EZ-Latch Plus：PCIe 5.0 x16 slot & M.2 slots with quick release design
- UC BIOS：User-Centred intuitive UX with Quick Access function
- Ultra-Fast Storage：5*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Overall Thermal：VRM Thermal Armor Fins-Array & M.2 Thermal Guard XTREME
- Fast Networking：10GbE + 2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
- Extended Connectivity：Dual Thunderbolt 4™, Dual Front USB-C® 20Gb/s
- DTS:X® Ultra Audio：ESS ES9280A DAC and ESS ES9080A with Front ESSential USB DAC Bundled
DDR5 Performance
Designed to leverage the power of DDR5 RAM, the Z790 AORUS XTREME X uses a function-rich BIOS system to enhance throughput. DDR5 XMP Booster, Auto Booster, and XMP 3.0 User Profile allow you to quickly optimize the speed up to 8266 MHz retaining high bandwidth and low latency. Additionally, you get shielded and isolated memory routing, an 8-layer server-grade PCB, and back drilling technology, increasing your memory’s performance.
Enhanced Power Delivery
Digital twin VRM design with 24 VCORE, 1 VCCGT, and 2 VCCAUX phases drives electrical power to enhance the full potential of Intel’s multi-core CPU performance while maintaining stability.
Cooling System
Keep your components nice and cool even at full loads with various cooling enhancements. VRM Thermal Armor Fins-Array provides greater surface area for increased thermal performance. M.2 Thermal Guard XTREME prevents thermal throttling of your storage drive by increasing thermal dissipation. M.2 Thermal Guard Ext uses a thermal backplate to cover four of your M.2 storage devices. You also get vent holes on the back panel as well as Smart Fan6 software so you can customize your fan performance to your liking.
DIY-Friendly Design
Whether you are a newcomer or a seasoned builder, the Z790 AORUS XTREME X includes various improvements designed to simplify the building process. EZ-Latch helps secure and remove graphics cards while Multi-Key offers a configurable button that you can use to either boot directly to BIOS, enable safe mode, turn off all lighting effects, and more. Q-Flash Plus makes it easy to update your BIOS by only connecting your power supply.
5″ LCD Display
The VRM heat sink features an integrated 5″ LCD display which can display the CPU temperature, voltage, and clock speed along with the VRM temperature, Fan pump RPM, and memory clock speeds, keeping you in the know and aware of how your system is performing while you game. It also features a unique startup video and dynamic AORUS logo, adding a unique flavor to your system.
Additional Features
The Z790 AORUS XTREME X includes a wide range of additional features designed to optimize the performance and longevity of the motherboard, giving you long-lasting lifespan including PCIe UD Slot X, Memory UD Slot D5, M.2 UD Slot PG5, UD Nanocarbon Backplate, and UD Power Connectors.
Connectivity
Connect to your network with enhanced Wi-Fi 7 (802.11be) technology and ultra-high gain antenna, allowing you to download your favorite games quickly, stream to your gameplay, and enjoy some of your favorite streaming media. You also get a 10 GbE LAN port, increasing wired performance.
Customization
Whether you are adjusting the fan curve or colorization settings, the Z790 AORUS XTREME X simplifies the experience with a redesigned UI and UX system, 9 customizable option slots for effortless access in easy mode, and Perf Drive that enables cooling capabilities to line up with your system’s performance automatically. You also get Gigabyte Control Center with RGB Fusion which allows you to adjust color and effect options for your equipment. Obtain memory timings monitoring, detailed BIOS info, and a unique AORUS-themed skin with integrated HWiNFO software.
| Model | |
| Brand | GIGABYTE |
| Model | Z790 AORUS XTREME X |
| Supported CPU | |
| CPU Socket Type | LGA 1700 |
| CPU Type | Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors* * Please refer to "CPU Support List" for more information. |
| Chipsets | |
| Chipset | Intel Z790 Express Chipset |
| Memory | |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| Memory Feature | 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
| Expansion Slots | |
| PCI Express 5.0 x16 | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| PCI Express 3.0 x16 | Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
| Storage Devices | |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
| M.2 | CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) |
| SATA RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Onboard Audio | |
| Audio Chipset | 1 ESS ES9280AC DAC chip + 2 ESS ES9080 chips DTS Sound Unbound High Definition Audio 2-channel Support for S/PDIF Out * The line out jack and the optical S/PDIF out connector can only be used one at a time. |
| Audio Channels | 2 Channels |
| Onboard LAN | |
| LAN Chipset | Marvell AQtion AQC107 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1) |
| Second LAN Chipset | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN2) |
| Max LAN Speed | 10Gbps + 2.5Gbps |
| Wireless LAN | Qualcomm Wi-Fi 7 QCNCM865 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11be 320MHz wireless standard * Actual data rate may vary depending on environment and equipment. |
| Bluetooth | Yes |
| Rear Panel Ports | |
| Back I/O Ports | 1 x Q-Flash Plus button 1 x OC Ignition button 2 x SMA antenna connectors (2T2R) 2 x Thunderbolt 4 connectors (USB Type-C ports, with USB 3.2 Gen 2 support) 10 x USB 3.2 Gen 2 Type-A ports (red) 2 x RJ-45 ports 1 x optical S/PDIF Out connector 2 x audio jacks * The mic in jack supports only mono microphone input |
| Internal I/O Connectors | |
| Onboard USB | 2 x USB Type-C headers, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers |
| Other Connectors | 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan extension cable header (can extend three system fan headers through one cable) 1 x system fan/water cooling pump extension cable header (can extend three system fan/water cooling pump headers through one cable) 1 x noise detection header 1 x integrated extension cable header for addressable RGB Gen2 LED strips and RGB LED strips (can extend three addressable RGB Gen2 LED strip headers and three RGB LED strip headers through one cable) 4 x SATA 6Gb/s connectors 5 x M.2 Socket 3 connectors 1 x front panel header 1 x integrated extension cable header for system fan/water cooling pump and USB 2.0/1.1 headers (can extend one system fan/water cooling pump header and two USB 2.0/1.1 headers through one cable) 2 x temperature sensor headers 1 x power button 1 x reset button 1 x Clear CMOS button |
| Physical Spec | |
| Form Factor | Extended ATX |
| Dimensions (W x L) | 30.5cm x 28.5cm |
| Power Pin | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
| Windows Compatibility | |
| Windows 11 | Supported |
| Weight | 2 kg |
|---|---|
| Product Type |
Gaming |
| color |
Black |
| Brands |
Gigabyte |
| Chipset |
Z790 |
| Memory Series |
DDR5 |
| Motherboard Series |
Gigabyte Aorus |
| Motherboard Size |
E-ATX |
| Platform |
Intel |
| RAM Type |
DDR5 |
| Socket |
LGA 1700 |
| Warranty |
3 Years |
| EAN / UPC Code |
4719331857547 |
