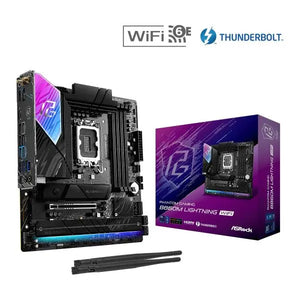

ASRock Phantom Gaming B860M Lightning WiFi Intel B860 DDR5 Micro-ATX Gaming Motherboard
Asrock PHANTOM GAMING B860M Lightning WiFi
FAST
MYSTERIOUS
UNBEATABLE
Asrock Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!
- Asrock PHANTOM GAMING B860M Supports Intel Core Ultra Processors (Series 2) (LGA1851)
- 12+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA
- 4 x DDR5 DIMMs Supports Dual Channel, up to 8666+ (OC)
- Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 Thunderbolt 4 Type-C Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
- 1 PCIe 5.0 x16 4 SATA3 1 Blazing M.2 (PCIe Gen5x4) 3 Hyper M.2 (PCIe Gen4x4)
- 1 Thunderbolt 4 Type-C (Rear) 3 USB 3.2 Gen2 (2 Rear, 1 Front Type-C) 6 USB 3.2 Gen1 (4 Rear, 2 Front) 6 USB 2.0 (2 Rear, 4 Front)
| Category | Details |
|---|---|
| Unique Features | PCIe Gen5, DDR5 Dual Channel, Thunderbolt 4, Killer LAN/Wi-Fi, BIOS Flashback, ASRock Auto Driver Installer, Post Status Checker |
| CPU Support | Intel® Core™ Ultra Processors (Series 2), Hybrid Tech, Turbo Boost Max 3.0, Thermal Velocity Boost, Adaptive Boost, Built-in NPU |
| Chipset | Intel® B860 |
| Memory | 4x DDR5 DIMMs (up to 256GB), Supports XMP 3.0, Up to 8666+ MHz (OC), CUDIMM & non-ECC |
| Graphics Support | Intel Xe LPG, 1x HDMI 2.1 (4K@120Hz), 1x DP 1.4 (8K@60Hz), 1x Thunderbolt 4 (8K@60Hz) *Requires CPU with iGPU |
| Audio | 7.1 CH HD (Realtek ALC1220), Impedance Sensing, Nahimic Audio |
| LAN | Killer E3100G 2.5G LAN with Killer Software & DoubleShot™ Pro |
| Wi-Fi | Wi-Fi 6E (Intel AX), Dual Band 2x2, BT 5.3, MU-MIMO, Killer Software, 6GHz support (Windows 11 only) |
| Expansion Slots | - 1x PCIe 5.0 x16- 1x M.2 (Wi-Fi/BT Key E) |
| Storage Interface | - 1x PCIe Gen5x4 M.2- 3x PCIe Gen4x4 M.2- 4x SATA 6Gb/sSupports RAID 0/1/5/10, VMD, NVMe boot |
| USB Ports | - Rear: 1x Thunderbolt 4, 2x USB 3.2 Gen2, 4x USB 3.2 Gen1, 2x USB 2.0- Front: 1x USB 3.2 Gen2 Type-C, 2x USB 3.2 Gen1, 4x USB 2.0 |
| Internal Headers | - RGB & ARGB Headers (12V/5V LED Strip support)- 6x Fan Headers (Smart Fan Control)- USB 2.0, USB 3.2 Gen1, USB-C Front Panel Headers |

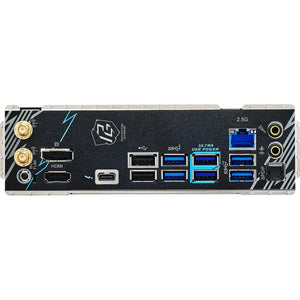

| Rear I/O Ports | HDMI, DisplayPort, SPDIF, Thunderbolt 4, 6x USB-A, RJ-45 LAN, BIOS Flashback, Line-Out, Mic-In, Antenna Ports |
| BIOS | 256Mb UEFI AMI BIOS, EZ Mode, Instant Flash, Auto Driver Installer |
| Software Support | ASRock Polychrome Sync, Phantom Gaming Tuning, Killer Control Center |
| Accessories | 2x SATA cables, 2x Wi-Fi Antennas, 1x Thermistor Cable, 1x M.2 screw |
| Form Factor | Micro ATX (9.6 x 9.6 inches, 2oz Copper PCB) |
| Power Phases | 12+1+1+1+1 Power Phase Design, 80A SPS, Enlarged Heatsink Armor |
| OS Support | Microsoft Windows 11 64-bit |
| Certifications | FCC, CE, ErP/EuP Ready |
| Weight | 1 kg |
|---|---|
| Brands |
AsRock |
| Chipset |
B860 |
| Socket |
LGA 1851 |
| Motherboard Series |
AsRock Phantom |
| Motherboard Size |
mATX |
