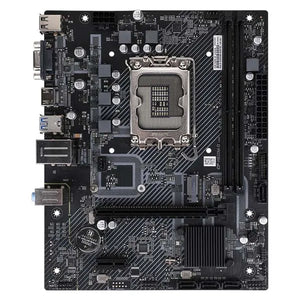

Colorful H610M-D V20A mATX Intel H610 Motherboard (LGA1700)
Colorful H610M-D V20A M-ATX Motherboard
Feature
- Intel H610 chipset
- Colorful motherboard Supports dual-channel DDR4-3200MHz memory
- Provides 1 PCIe 3.0 x4 M.2 SSD slot
- Equipped with HDMI+VGA display interface
- Equipped with Realtek 8111H Gigabit wired network card
- Equipped with Realtek ALC897 sound card chip, supporting up to 5.1 channels
- Rear: 2 USB 3.2 Gen 1 Type-A interfaces, 4 USB 2.0 interfaces
- Front: Expandable 2 USB 3.2 Gen 1 Type-A interfaces, 2 USB 2.0 interfaces
| Model | H610M-D V20A |
|---|---|
| Product Series | Colorful series |
| Chipset | Intel H610 |
| Processor | Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor (*Please visit the Colorful official website www.colorful.cn for the latest processor support list) |
| Memory | 2 DDR4 memory slots, supporting up to 64 GB memory (single slot supports up to 32 GB) - Supports DDR4-3200/2933/2666/2400/2133MHz memory - Supports dual-channel memory technology (*Please visit Colorful's official website www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces -M.2 slot: supports 2242/2280 specification M.2 SSD (PCIe 3.0 x4, PCH channel) |

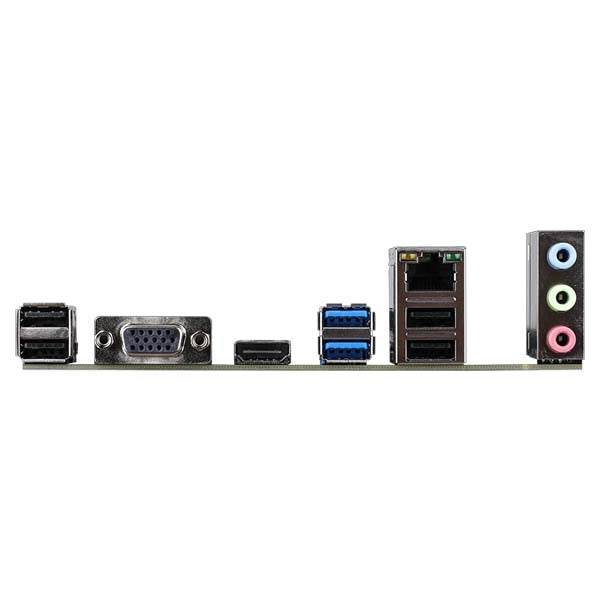

| Board I/O | Rear I/O : -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 Type-A interfaces -1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution -1×VGA interface -1×Gigabit network interface -3×Audio interfaces (audio input/audio output/microphone) On board: -1×CPU fan pin -1×System fan pin -1×USB 2.0 pin can be expanded to 2 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A interfaces -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×Clear CMOS jumper -1×BIOS burner pin |
| Expansion Slots | 1 PCIe 4.0 x16 slot 1 PCIe 3.0 x1 slot |
| BIOS | 128M UEFI, support multiple languages |
| Power Management | Support S3, S4, network S5 wake-up, support scheduled startup, call startup |
| Hardware Monitor | CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, System temperature monitoring, and each group voltage monitoring |
| LAN | RTL8111H Gigabit network card |
| Audio | Realtek ALC897 high-fidelity decoding chip, supports 5.1 channels |
| Configuration | M-ATX 225mm x 180mm |
| Weight | 1 kg |
|---|---|
| Brands |
Colorful |
| color |
Black |
| Motherboard Size |
mATX |
| Warranty |
3 Years |
