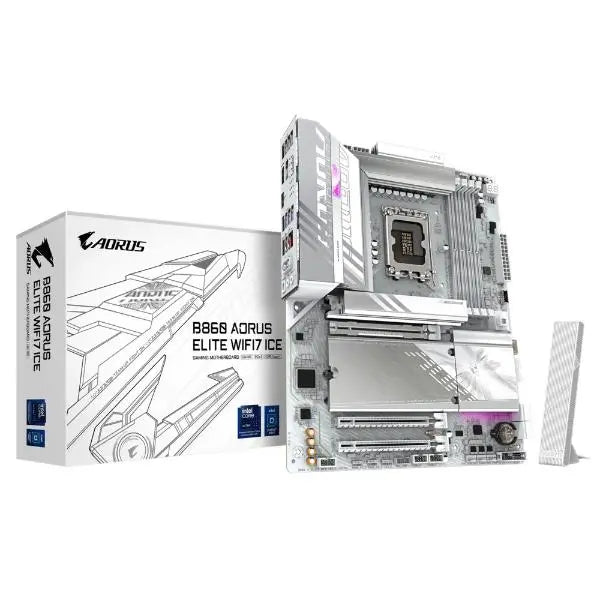

Gigabyte B860 AORUS Elite WiFi 7 ICE ATX Intel LGA1851 DDR5 Motherboard
Gigabyte B860 AORUS ELITE WIFI7 ICE ATX Motherboard
- Gigabyte Supports Intel® Core™ Ultra processors (Series 2)
- Digital twin 14+1+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4

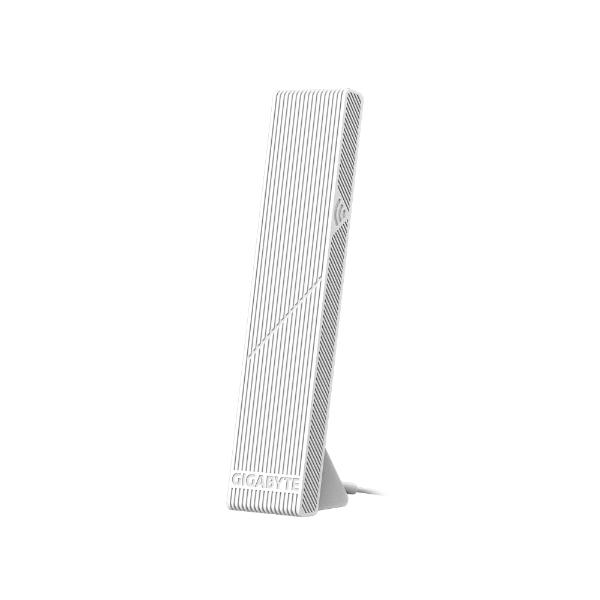

- Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

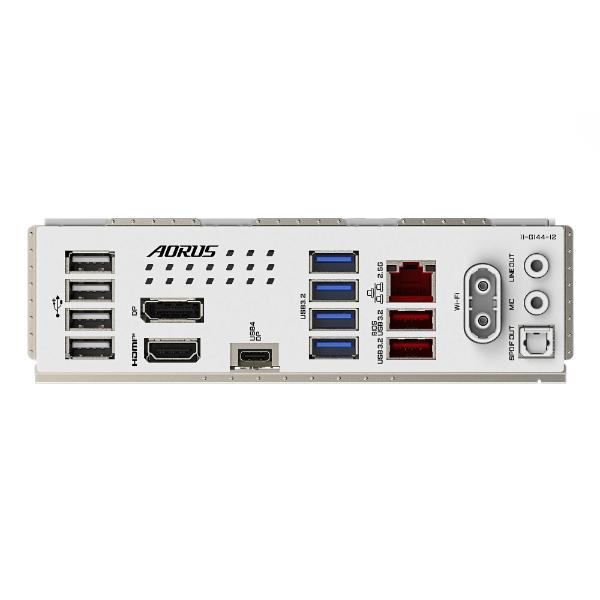

- Extended Connectivity : USB4 Type-C with DP-Alt, HDMI, DisplayPort
| CPU Socket | LGA 1851 |
| Chipset | Intel® B860 Express |
| Processor Support | Intel® Core™ Ultra (Series 2) |
| Memory Support | DDR5 9200(O.C) to 5600 MT/s |
| Memory Slots | 4 x DDR5 DIMM (up to 256GB) |
| Memory Features | Dual-channel, XMP support, ECC Un-buffered (non-ECC mode) |
| PCIe Slots | 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x1 |
| M.2 Slots | 1 x PCIe 5.0 x4, 2 x PCIe 4.0 x4 |
| SATA Ports | 4 x SATA 6Gb/s (RAID 0/1/5/10 support) |
| USB Ports | USB4 Type-C, USB 3.2 Gen 2 & Gen 1, USB 2.0 |
| Networking | Realtek® 2.5GbE LAN, Wi-Fi 7 (PCB Rev. 1.1) |
| Audio | Realtek® Audio CODEC, HD Audio, 7.1-channel, S/PDIF Out |
| Graphics Output | DisplayPort 2.1, HDMI 2.1, USB4 Type-C (DP) |
| Expansion Features | Q-Flash Plus, Smart Backup, GCC Support |
| Form Factor | ATX (30.5cm x 24.4cm) |
| Weight | 1 kg |
|---|---|
| Brands |
Gigabyte |
| Motherboard Series |
Gigabyte Aorus |
| Motherboard Size |
ATX |
| Chipset |
B860 |
| Socket |
LGA1851 |
| EAN / UPC Code |
04719331866846 |
| Memory Series |
DDR5 |
| Platform |
Intel |
| Warranty |
3 Years |
