Gigabyte X870E AORUS Pro X3D AM5 DDR5 ATX Gaming Motherboard
GIGABYTE X870E AORUS PRO X3D AM5 ATX Motherboard
Feature
- X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
- DDR5 OC up to 9000MT/s
- DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 18+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4
- PCB Thermal Plate : 14% thermal improvement and reinforced motherboard stability.
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
- Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W
- PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
Brand New Gaming Experience
X3D Turbo Mode 2.0
Incredible X3D performance unleashed by AI.
X3D Turbo Mode 2.0 delivers enhanced gaming and multitasking performance over the first generation. Built-in AI model and hardware circuits dynamically optimize X3D processor parameters in real-time, significantly boosting Ryzen™ X3D performance.
Through GIGABYTE’s innovative X3D Turbo Mode 2.0 technology, users can enjoy a smoother gaming experience.
One-Click Acceleration:Faster, fiercer, more precise with a single click.
Memory
Infinite Memory Performance
X3D series gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
| Specification | Details |
|---|---|
| CPU Support | AMD Socket AM5: Ryzen™ 9000/8000/7000 Series (check GIGABYTE site for latest) |
| Chipset | AMD X870E |
| Memory | 4 x DDR5 DIMM up to 256 GB (64 GB single); DDR5 9000(O.C) to 4800 MT/s; Dual channel; Non-ECC 1Rx8/2Rx8/1Rx16; AMD EXPO™/XMP support (check support list) |
| Onboard Graphics | AMD Radeon™ Graphics: 1 x HDMI rear (4096x2160@60 Hz, HDMI 2.1), 1 x HDMI front (1920x1080@30 Hz, HDMI 1.4); ASMedia USB4®: 2 x USB4® Type-C (3840x2160@240 Hz, DP 1.4, HDR) |
| Audio | Realtek® ALC1220; HD 2/4/5.1/7.1-channel; S/PDIF Out; DSD support (rear line out) |
| LAN | Realtek® 5GbE (5/2.5/1 Gbps/100 Mbps) |
| Wireless | Qualcomm® Wi-Fi 7 QCNCM865 (802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz, 320 MHz); Bluetooth 5.4 (Windows 11 required for Wi-Fi 7) |
| Expansion Slots | CPU: 1 x PCIe x16 (5.0 x16/4.0 x8/x4); Chipset: 1 x PCIe x16 (x4), 1 x PCIe x16 (x2) |
| Storage | M.2 (CPU): M2A_CPU (PCIe 5.0/4.0 x4/x2, 25110/22110/2580/2280), M2B_CPU (PCIe 5.0 x4/x2, 22110/2280, shares w/ USB4); Chipset: M2C_SB/M2D_SB (PCIe 4.0 x4/x2, 22110/2280); 4 x SATA 6Gb/s; RAID 0/1/5/10 (NVMe), 0/1/10 (SATA) |
| USB (Rear) | USB4®: 2 x Type-C; 2 x Type-C Gen 2; 5 x Gen 2 Type-A (red); 3 x Gen 1 |
| USB (Internal) | 1 x Type-C Gen 2x2 (65W PD); 2 x Gen 1 headers; 2 x 2.0 headers |
| Internal Connectors | Power: 24-pin ATX, 2 x 8-pin 12V, PCIe power; Fans/Pump: 1 x CPU, 1 x CPU OPT, 4 x SYS, 2 x SYS/WP; RGB: 3 x ARGB Gen2, 1 x RGB; Other: Front panel/audio, USB headers, TPM, HDMI front, noise detection, reset/CMOS jumpers, temp sensors |

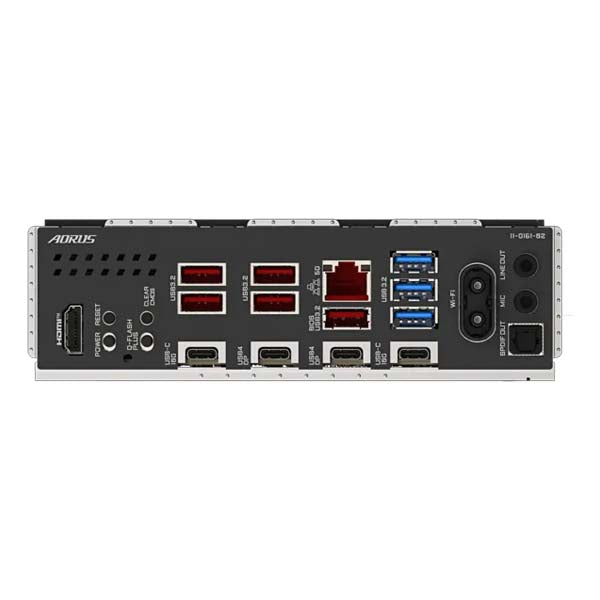

| Back Panel | HDMI; Reset/power/Clear CMOS/Q-Flash Plus buttons; 2 x USB4® Type-C; 2 x USB-C Gen 2; 5 x USB 3.2 Gen 2 (red); 3 x Gen 1; RJ-45; 2 x antennas; 2 x audio jacks; S/PDIF Out |
| I/O Controller | iTE® chip; H/W monitoring (voltage/temp/fan/flow/noise, fail warning, control) |
| BIOS | AMI UEFI, 512 Mbit; PnP/DMI/WfM/SM BIOS/ACPI support |
| Unique Features | GIGABYTE Control Center, Q-Flash/Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM) |
| OS Support | Windows 11 64-bit |
| Form Factor | ATX (30.5 x 24.4 cm) |
| Weight | 1 kg |
|---|---|
| Brands |
Gigabyte |
| color |
Black |
| Motherboard Size |
ATX |
| Socket |
AM5 |
| Memory Series |
DDR5 |
| Warranty |
3 Years |
| Ean code |
4719331876524 |
