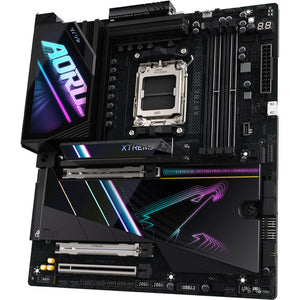

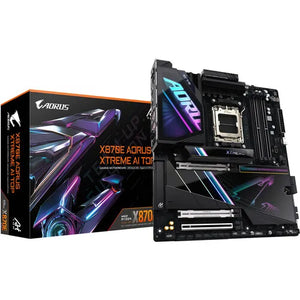

Gigabyte X870E AORUS XTREME AI TOP AM5 DDR5 E-ATX Motherboard

Sale price Rs. 89,989.00

Gigabyte X870E AORUS XTREME AI TOP AM5 E-ATX Motherboard

Digital Twin VRM Design

This motherboard delivers consistent, high-powered performance to elevate your overclocking to the next level. 9+9 (18) parallel design unlocks the full power of your multi-core CPU while 2 SOC phases are optimized for integrated GPU performance and memory management within the CPU. 2 MISC phases provide reliable power to your CPU-connected PCIe lanes for uninterrupted performance.

Wi-Fi 7

Wi-Fi 7 introduces support for expansive 320/160 MHz channels, dramatically increasing bandwidth for fast data transfer speeds.

Leveraging 4K-QAM technology, Wi-Fi 7 elevates data throughput, enabling fast file transfers and buffer-free streaming.

Wi-Fi 7’s MLO (Multi-Link Operation) technology allows strategic bandwidth allocation – dedicating 2.4 GHz for streaming and 5/6 GHz for gaming, resulting in an interruption-free network experience.

With its deterministic low latency, Wi-Fi 7 minimizes delays, making it the ideal choice for time-sensitive applications, such as video conferencing and competitive online gaming.

Dual 10GbE LAN

Supercharge your online gaming with dual 10GbE RJ45 LAN jacks. With fast speeds, minimal lag, and optimal performance, you’ll be able to elevate your gaming rig for online competition.

I/O Zone AORUS RGB Lighting

Customize your gaming build with immersive AORUS lighting effects with I/O Zone AORUS RGB lighting.

EZ-Latch Designs

PCIe EZ-Latch Plus
  • Easy ejection with a single slick for graphics cards

    M.2 EZ-Latch Click

  • Tool-less installation for M.2 heat sink

    M.2 EZ-Latch Plus

  • Tool-less installation for M.2 SSDs

    Wi-Fi EZ-Plug

  • Quick and easy design for Wi-Fi antenna installation
Sensor Panel Link
The built-in video port streamlines the Sensor Panel setup without management concerns.
Ultra Durable Design
  • Titanium PCIe UD Slot X
  • PCIe UD Slot
  • UD Power Connector
Gigabyte Control Center
RGB Fusion
  • Customize the RGB lighting with precise control over individual LEDs with Gigabyte Control Center.
Chipset
AMD X870E
CPU Socket
AM5

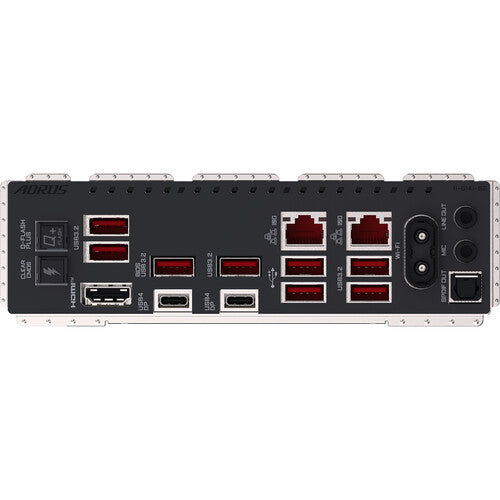

Back Panel I/O
USB
2x USB-C (USB4) 6x USB-A (USB 3.1/3.2 Gen 2) 2x USB-A (USB 2.0)
Thunderbolt
No
Display
1x HDMI
Audio
2x 1/8" / 3.5 mm 1x S/PDIF
Ethernet / Controller
2x Marvell AQtion AQC113C 10GbE
Wi-Fi Antenna
2x Connector
Buttons
BIOS Flashback, Clear CMOS
Memory
Memory Slots
4x 288-Pin
Memory Support
DDR5 4400, 4800, 5200, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800 MT/s
Maximum Capacity
256 GB
Channel Architecture
Dual Channel
ECC Support
Non-ECC, ECC Unbuffered
Storage Expansion
SATA
4x SATA III
Storage Slots
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4, PCIe 5.0 x2, PCIe 4.0 x4, PCIe 4.0 x2) 2x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2) 1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x2)
Optane Memory Support
No
RAID Support
RAID 0, 1, 5, 10 (M.2) RAID 0, 1, 10 (SATA)
Internal I/O
Expansion Slots
1x PCIe 5.0 x16 1x PCIe 5.0 x16 (x8 mode) 1x PCIe 4.0 x16 (x2 mode)
USB
1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port) 2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling
1x 4-Pin CPU 4x 4-Pin System
Liquid Cooling
5x 4-Pin Pump
Power Connectors
1x 24-Pin Mainboard 2x 8-Pin ATX
Security
TPM Header
LED Header
4x RGB
Audio
No
Diagnostics
Clear CMOS, Power, Reset, Voltage Regulation
BIOS
ROM
256 Mb
Front Panel I/O
Front Panel I/O
AAFP
Audio
Audio Codec
Realtek ALC1220 (5.1-Channel)
DAC
ESS ES9118
Wireless
Wi-Fi
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)
Bluetooth
5.3
Software
OS Compatibility
Windows 11 (64-Bit Only)
Physical
Form Factor
E-ATX
Dimensions
12.0 x 10.6" / 30.5 x 26.9 cm
Weight 1 kg
Brands

Gigabyte
Motherboard Series

Gigabyte AI TOP, Gigabyte Aorus
Motherboard Size

E-ATX
Chipset

X870
Socket

AM5
Memory Series

DDR5
EAN / UPC Code

4719331866150
