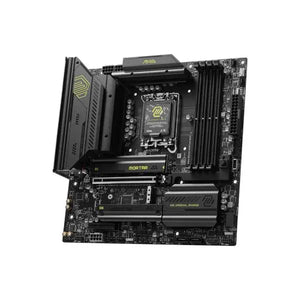

MSI MAG B860M Mortar WiFi LGA1851 DDR5 mATX Motherboard
MSI MAG B860M MORTAR WIFI LGA 1851 mATX Motherboard
MSI MAG B860M MORTAR WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with Killer Wi-Fi 7 solution and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it’s ready for the battlefied of Intel Core Ultra processors.
MSI’s mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
AI Engine
provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
AI LAN MANAGER
optimizes networking performance and minimizes latency, providing a seamless online experience.
Frozr AI Cooling
automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
AI Boost
is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.
| Chipset | INTEL B860 |
| CPU Support | Intel® Core™ Ultra Processors (Series 2) |
| Socket | LGA 1851 |
| Memory | 4x DDR5 UDIMM, Maximum Capacity 256GB |
| Memory Speed (OC) | Up to 9200+ MT/s |
| Memory Speed (JEDEC) | 6400 - 4800 MT/s |
| Memory Features | Intel® XMP 3.0, Dual-Channel Mode, Non-ECC, Unbuffered |
| Onboard Graphics | 1x HDMI™ 2.1 (8K@60Hz) |
| 1x DisplayPort 1.4 (4K@60Hz) |
| 1x Type-C DisplayPort (Thunderbolt™ 4) (4K@120Hz / 8K@60Hz) |
| PCI-E Slots | 1x PCI-E 5.0 x16 (CPU) |
| 1x PCI-E 4.0 x4 (Chipset) |
| Audio | Realtek® ALC897 Codec, 7.1-Channel HD Audio, S/PDIF Output |
| Storage | 3x M.2 (PCIe 5.0/4.0), 4x SATA 6G |
| RAID Support | RAID 0, 1, 5, 10 for SATA |
| Thunderbolt | 1x Thunderbolt 4 Port (40Gbps) |
| USB Ports (Rear) | 4x USB 2.0, 3x USB 10Gbps Type-A, 1x USB 10Gbps Type-C |
| USB Ports (Front) | 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| LAN | Intel® Killer™ E5000 5Gbps LAN |
| Wireless | Intel® Killer™ BE1750x Wi-Fi 7, Bluetooth® 5.4 |
| Internal I/O | Power Connectors (ATX_PWR, CPU_PWR, PCIE_PWR 8-pin), CPU Fan, System Fan, RGB Headers, TPM Header |
| LED Features | 4x EZ Debug LED, 1x EZ Memory Detection LED |
| Weight | 1 kg |
|---|---|
| Brands |
MSI |
| Motherboard Series |
MSI MAG |
| Motherboard Size |
M-ATX |
| Memory Series |
DDR5 |
| Socket |
LGA 1851 |
| Chipset |
B860 |
