MSI PRO B760M-E DDR5 mATX Motherboard – Intel LGA1700, Supports 12th, 13th & 14th Gen Processors

Sale price Rs. 8,960.00

Go kalles this summer with this vintage navy and white striped v-neck t-shirt from the Nike. Perfect for pairing with denim and white kicks for a stylish kalles vibe.

Add to Wishlist
Add to Compare
MSI PRO B760M-E DDR5 mATX Motherboard – Intel LGA1700, Supports 12th, 13th & 14th Gen Processors
MSI PRO B760M-E DDR5 mATX Motherboard – Intel LGA1700, Supports 12th, 13th & 14th Gen Processors
Sale priceRs. 8,960.00
Availability: In stock
Categories: MotherBoard
MSI PRO B760M-E DDR5 mATX Motherboard – Intel LGA1700, Supports 12th, 13th & 14th Gen Processors

MSI PRO B760M-E DDR5 mATX Motherboard – Intel LGA1700, Supports 12th, 13th & 14th Gen Processors

Rs. 8,960.00

MSI PRO B760M-E Motherboard, Micro-ATX – Supports Intel 12th & 13th Gen Core Processors, LGA 1700 – DDR5 Memory Boost 5600MHz, PCIe 4.0 x16 Slot, M.2 Gen4 Slot



MSI PRO B760M-E is designed for professional as well as multi-tasking purpose with DDR5 memory version. Users who care about productivity and efficiency can use this motherboard for future use. Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC).

Features:

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength





Model PRO B760M-E
Chipset INTEL B760
CPU SUPPORT Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Memory 2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Onboard Graphics 1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT
  • 1x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 3.2 Gen1 Type A (Rear)
  • 2x USB 3.2 Gen1 Type A (Front)
LAN Realtek® RTL8111H Gigabit LAN
Audio Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Internal I/O
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 2x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 3.2 Gen1 Type A ports
LED FEATURE 4x EZ Debug LED

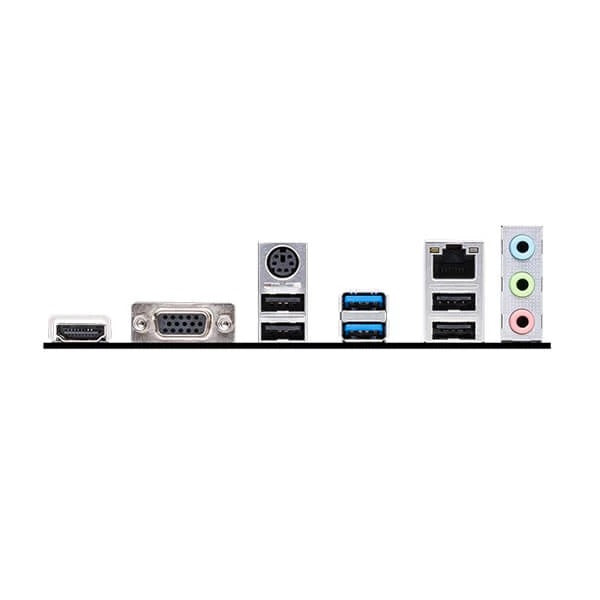

BACK PANEL PORTS
  • HDMI™
  • VGA
  • Keyboard / Mouse
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • LAN port
  • Audio Connectors
  • USB 2.0
  • USB 2.0
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension (W × L) mATX 200mmx236.16mm
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
Weight 1 kg
Brands

MSI
Chipset

B760
Memory Series

DDR5
Motherboard Size

mATX
Product Type

Normal
RAM Type

DDR5
Socket

LGA 1700
Warranty

3 Years
EAN / UPC Code

4711377026987
