MSI PRO B840M-B mATX AMD Ryzen 9000 Series Motherboard with DDR5, PCIe 4.0, 2.5G LAN & Type-C

Rs. 8,689.00

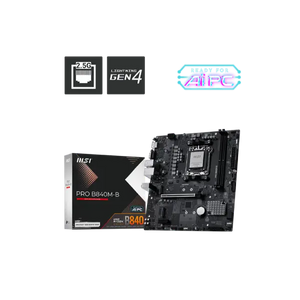

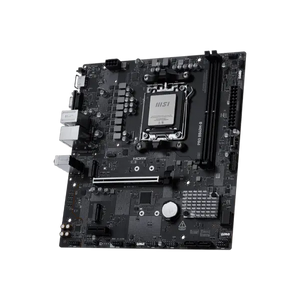

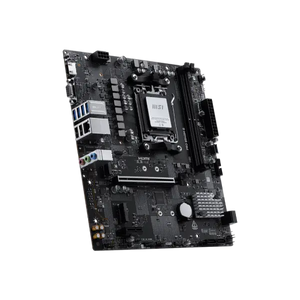

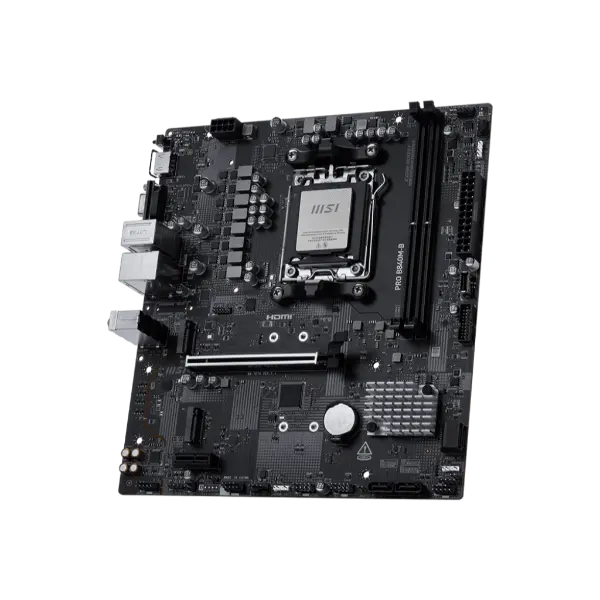

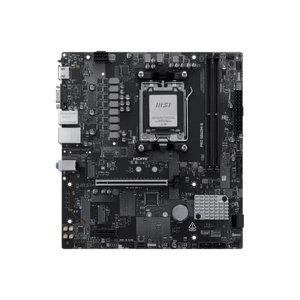

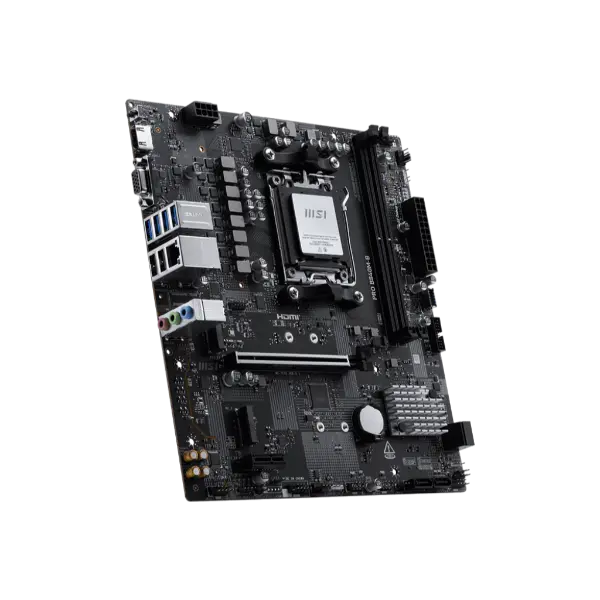

MSI PRO B840M-B m-ATX AMD Motherboard

PRO B840M-B is engineered with many exclusive features of MSI, PCIe 4.0 M.2, EZ PCIe Clip II, 2.5G LAN, and Front Type-C, ready for the AMD Ryzen™ 9000 series processors.

PRO B840M-B

Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC)
Ultra Performance: Direct 7+2+1 Power System with P-PAK, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper
EZ DIY: EZ M.2 Clip II and EZ PCIe Clip II
Lightning Fast Game experience: PCIe 4.0 slot and Lightning Gen 4 x4 M.2
2.5G LAN: the remarkable solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Feature	Specification
Chipset	AMD B840
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8000+ MT/s 1DPC 2R Max speed up to 7200+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion Slots	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
Audio	Realtek® ALC897 7.1-Channel High Definition Audio
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4x SATA 6G M2_2 slot Supports up to PCIe 4.0 x4 Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

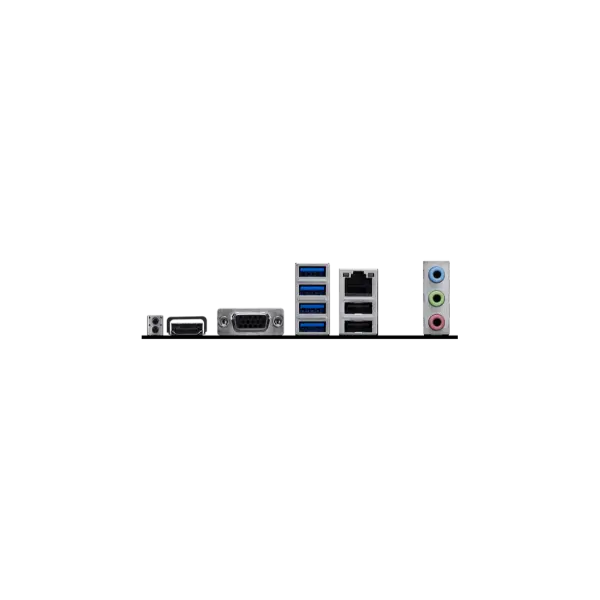

USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front)
LAN	Realtek® 8125D 2.5G LAN
Internal I/O	1x Power Connector (ATX_PWR) 1x Power Connector (CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector (JRGB) 1x TPM pin header (Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
LED Feature	4x EZ Debug LED 1x EZ Memory Detection LED

Weight	1 kg
Brands	MSI
Chipset	B840
Motherboard Series	MSI PRO
Socket	AM5
Warranty	3 Years
Memory Series	DDR5
Motherboard Size	mATX
Platform	AMD
RAM Type	DDR5
EAN / UPC Code	4711377360166
