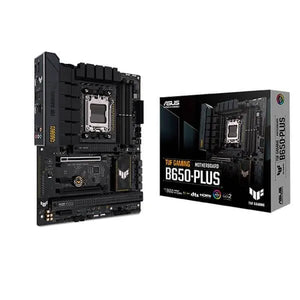

ASUS TUF Gaming B650-Plus AM5 DDR5 ATX Motherboard
Go kalles this summer with this vintage navy and white striped v-neck t-shirt from the Nike. Perfect for pairing with denim and white kicks for a stylish kalles vibe.
ASUS TUF Gaming B650-Plus AM5 DDR5 ATX Motherboard
Asus TUF Gaming B650 Plus Motherboard
ASUS TUF GAMING B650 PLUS WIFI AMD Ryzen AM5 Micro-ATX motherboard, 14 power stages, PCIe 5.0 M.2 support, DDR5 memory, WiFi 6 and 2.5 Gb Ethernet, USB4 support and Aura Sync
ASUS is one of Fortune magazine’s World’s Most Admired Companies and is one of the top motherboard and gaming brands, as well as a top-three consumer notebook vendor. ASUS is driven by passion and innovation and dedicated to creating quality products for a future smart life, designing and manufacturing products that perfectly meet the needs of today’s digital home, office and person. Our wide portfolio includes MG248Q, Chromebox and a range of devices and components, along with AR and VR.
TUF GAMING B650-PLUS WIFI
- AMD AM5 socket: B650 Plus Ready for AMD Ryzen 7000 Series desktop processors

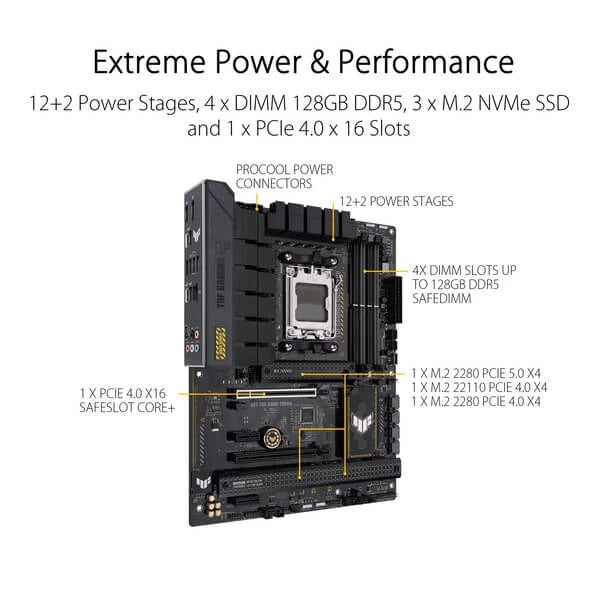

- Enhanced power solution: 12+2 teamed power stages, 8+4 ProCool sockets, alloy chokes and durable capacitors for stable power delivery
- Enhanced power solution: 12+2 teamed power stages, 8+4 ProCool sockets, alloy chokes and durable capacitors for stable power delivery
- Made for online Gaming: WiFi 6, Realtek 2.5 Gb Ethernet and TUF LANGuard
- Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
- Comprehensive cooling: Enlarged VRM and PCH heatsinks, M.2 heatsinks, hybrid fan headers and Fan Xpert 2+ utility in Armoury Crate
- KSP-7: Aura Sync RGB effects: Stylish edge lighting design, addressable RGB headers and RGB strip header support.
|
|
|
|
|---|---|---|
Cooler By Design1. Enlarged VRM Heatsink The extensive surface area of this heatsink covers the VRMs and chokes to improve heat dissipation. 2. Optimized M.2 Heatsink Design All M.2 slots have dedicated heatsinks, keeping M.2 SSDs at optimal operating temperatures to ensure consistent performance and reliability. |
DRAM Overclocking PerformanceDDR5 OC 6400 Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With TUF GAMING B650 Plus motherboards, you can extract all of the potential out of your DDR5 modules, whether they’re from an extreme-speed kit or an entry-level set that would otherwise be locked. |
PCIe 5.0 SupportTUF GAMING B650 Plus motherboards also feature one PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support for NVMe RAID configurations to take advantage of the latest available speeds. *Actual transmission speed will be lower than theoretical maximum speed. |
|
|
|
|
|---|---|---|
ConnectivityTUF-GAMING B650 motherboards reach new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes three Type-C connections, and Thunderbolt (USB4) expands compatibility and bandwidth even further. 1. USB 3.2 Gen 2×2 Type-C 2. PCIe 5.0 3. Front USB3.2 Gen 1 Type-C 4. USB4 Support |
Teamed Power Stages12+2 power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible AMD processors. |
ESD GuardsESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes. |
|
|
|
|
|---|---|---|
WiFi 6The WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 1.2 Gbps. Perhaps more importantly for power users, it’s optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6. |
Realtek 7.1 Surround SoundThe unique audio codec designed in close collaboration with Realtek for TUF GAMING B650 Plus motherboards features an unprecedented 108 dB signal-to-noise ratio for the stereo line out and a 103dB SNR for the line in, providing pristine audio quality. |
M.2 Q-LatchThe innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws. |
| CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* |
| Chipset | AMD B650 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD® EXTended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function |
| Graphics | 1 x DisplayPort * 1 x HDMI® port* * * Supports max. 8K@60Hz as specified in DisplayPort 1.4. **Supports 4K@60Hz as specified in HDMI 2.1 |
| Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors* 1x PCIe 4.0 /3.0x16 slots (supports x4 modes)* 2x pcle 4.0/3.0x1 slots |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports * AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) AMD B650 Chipset M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports ** *AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10. M.2_3 shares bandwidth with PCIEX16_2. PCIEX16_2 will be suspended once M.2_3 is populated. |
| Ethernet | 1 x Intel® 2.5Gb Ethernet TUF LANGuard |
| USB | Rear USB (Total 8ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports 4 x USB 2.0 ports Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | "Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC * - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. > |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x Type-C®) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 20-3 pin System Panel header with Chassis intrude function |
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) Enhanced DRAM Overcurrent Protection - ESD Guards TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield -- SafeDIMM AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s) |
| Software Features | ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

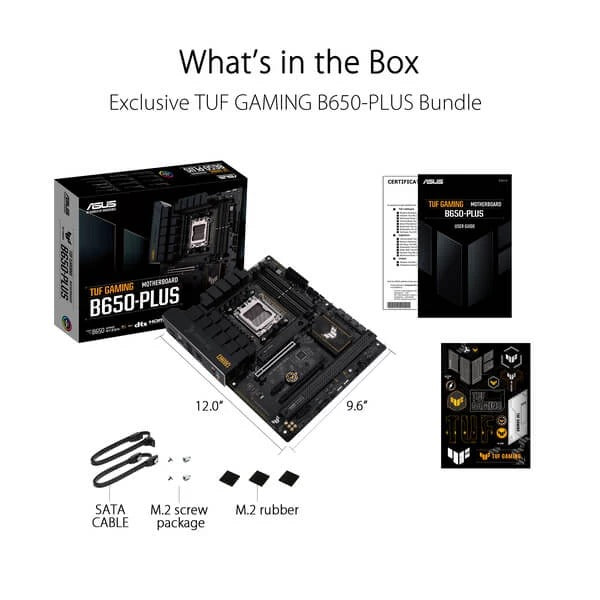

| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 2 x Rubber Package(s) for M.2 1 x Screw package(s) for M.2 SSD Installation Media 1 x Support DVD Documentation 1 x TUF Certification card 1 x User guide |
| Operating System | "Windows® 11 Windows® 10 64-bit" |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Weight | 1 kg |
|---|---|
| Product Type |
Normal |
| color |
Black |
| Brands |
Asus |
| Motherboard Size |
ATX |
| Chipset |
B650 |
| Socket |
AM5 |
| Memory Series |
DDR5 |
| Platform |
AMD |
| Motherboard Series |
Asus TUF |
| EAN / UPC Code |
4711081912767 |
