MSI B450M-A PRO MAX II mATX Motherboard – AMD AM4, Supports Ryzen 1st–3rd Gen CPUs, DDR4

Sale price Rs. 5,879.00

Go kalles this summer with this vintage navy and white striped v-neck t-shirt from the Nike. Perfect for pairing with denim and white kicks for a stylish kalles vibe.

Add to Wishlist
Add to Compare
MSI B450M-A PRO MAX II mATX Motherboard – AMD AM4, Supports Ryzen 1st–3rd Gen CPUs, DDR4
MSI B450M-A PRO MAX II mATX Motherboard – AMD AM4, Supports Ryzen 1st–3rd Gen CPUs, DDR4
Sale priceRs. 5,879.00
Availability: In stock
Categories: MotherBoard
MSI B450M-A PRO MAX II mATX Motherboard – AMD AM4, Supports Ryzen 1st–3rd Gen CPUs, DDR4

MSI B450M-A PRO MAX II mATX Motherboard – AMD AM4, Supports Ryzen 1st–3rd Gen CPUs, DDR4

Rs. 5,879.00

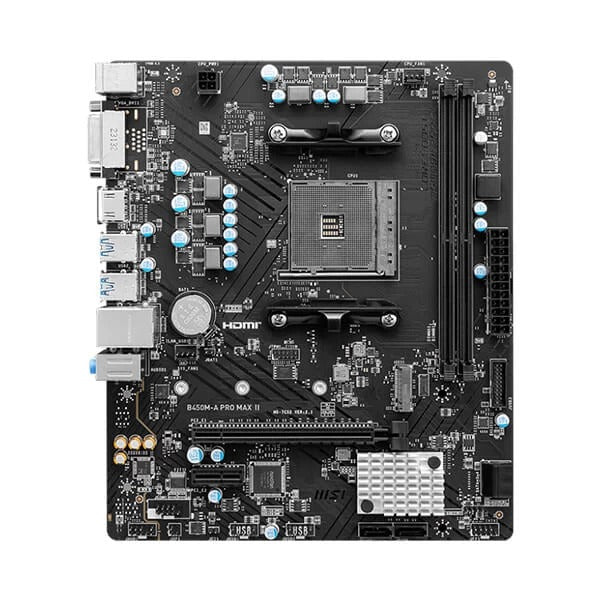

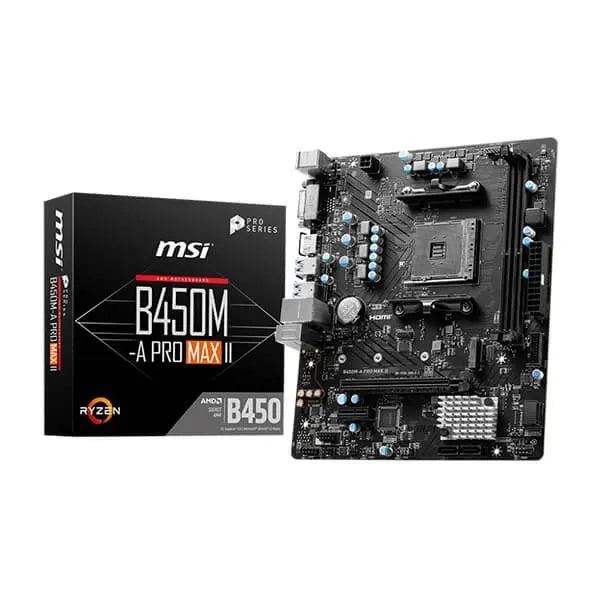

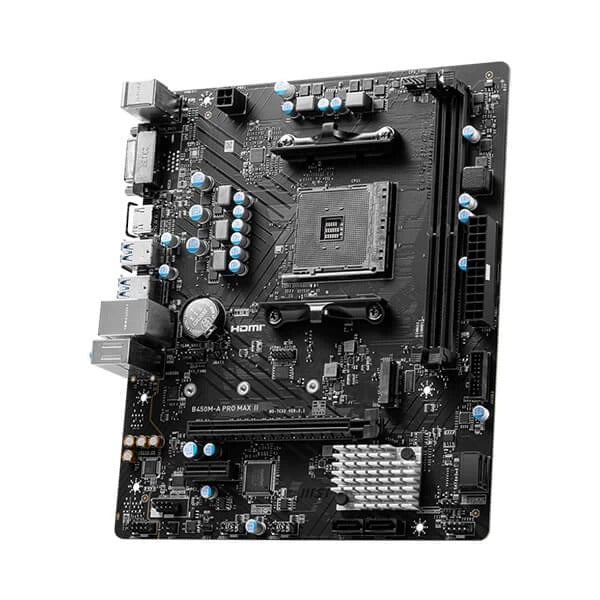

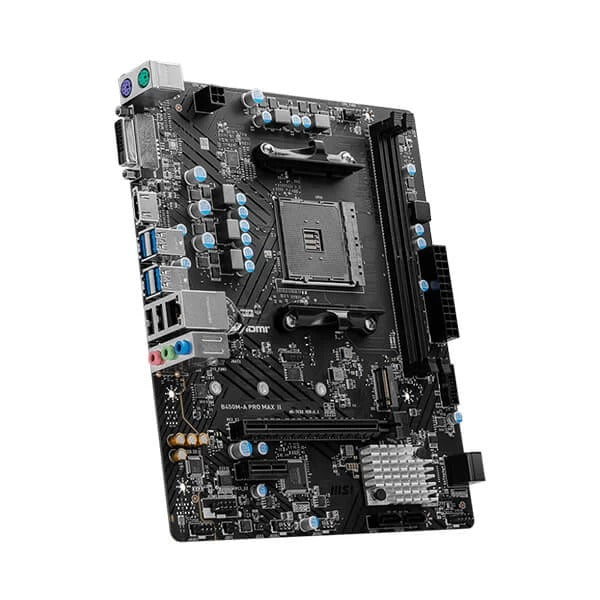

MSI B450M-A PRO MAX II Motherboard, Micro-ATX, AM4 DDR4 USB 3.2 Gen 1 HDMI

MSI B450M-A PRO MAX II is an AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1. This motherboard supports DDR4 Memory, up to 4133 (OC) MHz.

Features:

AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1

  • Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series desktop processors and Athlon with Radeon Vega Graphics desktop processors
  • Supports DDR4 Memory, up to 4133 (OC) MHz
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
  • Audio Boost: Reward your ears with studio grade sound quality.
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

AM4 Socket and B450 Chipset


The B450 chipset and AM4 socket provide compatibility and optimal performance for Ryzen 1000 to 5000 series processors.

Realtek ALC897 Codec & MSI Audio Boost


Enjoy studio-grade sound quality with the Realtek ALC897 codec and MSI Audio Boost.

2.5 GbE LAN


Benefit from Ethernet speeds up to 2.5 Gb/s thanks to the 2.5 GbE LAN port.

X-Boost Software


Easily maximize the performance of your storage drives with the X-Boost software.

Connect Plenty of Devices


Connect plenty of USB devices, legacy devices, and monitors with 12 USB ports (six USB-A 3.2 Gen 1 and six USB-A 2.0), two PS/2 ports, an HDMI port, and a DVI port.
Model B450M-A PRO MAX II
Chipset AMD B450
CPU SUPPORT Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon™ with Radeon™ Vega Graphics desktop processors Socket AM4
Memory
  • 2x DDR4, Maximum Memory Capacity 64GB
  • Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)
  • Supports Dual-Channel mode
  • Supports non-ECC, UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
Onboard Graphics
  • 1x HDMI™
Support HDMITM 1.4, maximum resolution of 4K 24Hz*
  • 1x DVI
Support DVI-D, maximum resolution of 1920x1200 60Hz
EXPANSION SLOT
  • 1x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset)
Storage 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB
  • 2x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 4x USB 3.2 Gen1 Type A (Rear)
  • 2x USB 3.2 Gen1 Type A (Front)
LAN Realtek® 8125 2.5Gbps LAN controller
Audio Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Internal I/O
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 3.2 Gen1 Type A ports

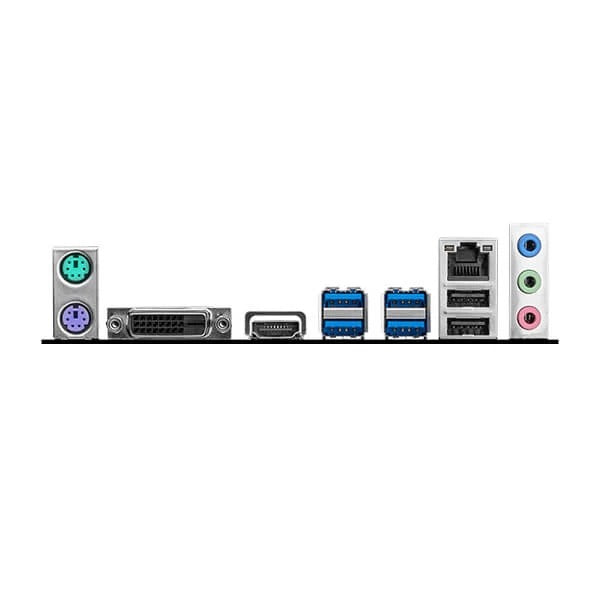

BACK PANEL PORTS
  • Keyboard/Mouse
  • DVI-D
  • HDMI™
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • 2.5G LAN
  • Audio connectors
  • USB 2.0
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension (W × L) mATX 200mmx236mm
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
Weight 1 kg
Product Type

Normal
Brands

MSI
color

Black
Memory Series

DDR4
Motherboard Size

mATX
Socket

AM4
Warranty

3 Years
EAN / UPC Code

4711377125291
