MSI PRO B650M-A WiFi AM5 DDR5 Micro-ATX Motherboard for AMD Ryzen 7000 Series
Go kalles this summer with this vintage navy and white striped v-neck t-shirt from the Nike. Perfect for pairing with denim and white kicks for a stylish kalles vibe.
MSI PRO B650M-A WiFi AM5 DDR5 Micro-ATX Motherboard for AMD Ryzen 7000 Series
MSI PRO B650M-A WIFI AM5 M-ATX MOTHERBOARD
FEATURES
- MSI PRO B650M-A Supports AMD Ryzen™ 7000 Series Desktop Processors
- MSI PRO B650M-A Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
The MSI PRO B650M-A is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
MSI: For Gamers & Creators
MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today’s performance limits.

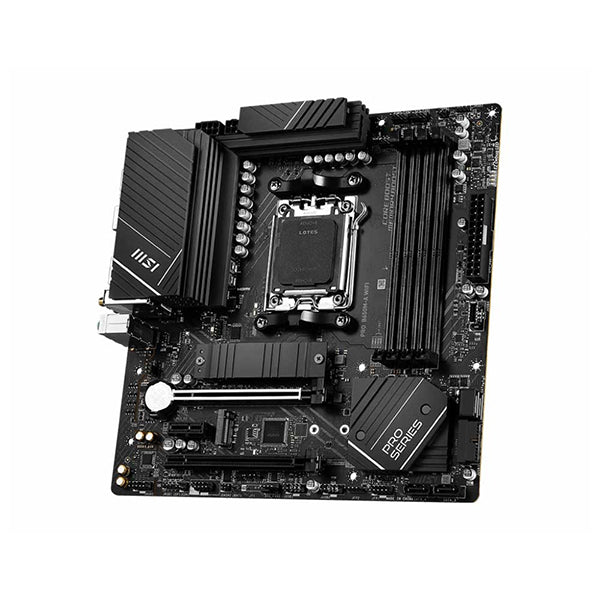

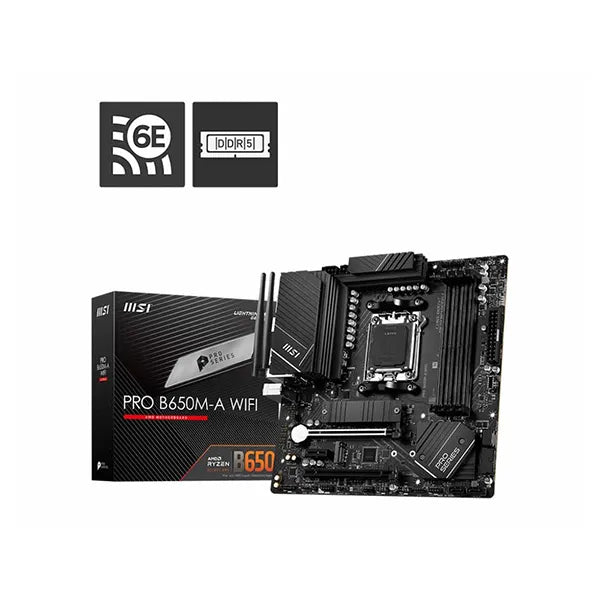

PRO B650M-A WIFI
Business Elegance
The PRO B650M-A WIFI is a business-oriented M-ATX motherboard featuring the latest AMD B650 chipset that includes ample RAM capacity.
- Supports AMD Ryzen 7000 Processors (Zen 4, AM5)
- 8 Duet Rail Power System with 55A DrMOS
- 2 x PCI-e 4.0 x16 slots
- 4 x DDR5 DIMMs with Memory Boost: Dual Channel (128GB Max. / 6400MHz OC)
- 2 x Lightning Gen4 M.2 slots with Shield Frozr
- 7.1 HD Audio with Audio Boost
- USB 3.2 Gen 2 Type-C (10Gbps)
- 2.5G LAN, AMD Wi-Fi 6E & Bluetooth 5.2
|
|
|
|
|
|---|---|---|---|
Supports AMD Ryzen 7000 ProcessorsThe PRO B650M-A WIFI motherboard supports AMD Ryzen 7000 processors. Form Factor: Micro-ATX Socket Type: AM5 Chipset: AMD B650 |
8 Phase VRM with 55A DrMOSWith its 8 pin + 4 pin power connectors and exclusive Core Boost technology, the PRO B650M-A WIFI is able to sustain heavy CPU power loads (up to 170W) to support system-demanding game settings:
|
Integrated Cooling FeaturesVRM Cooling: Features an extended heatsink and 7W/mK thermal pads. PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability. SSD Cooling: M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header. |
Gen4 M.2 ConnectorsThe PRO B650M-A WIFI motherboard features MSI’s latest M.2 slots: 2 x Gen4 x4 64Gb/s slots |
|
|
|
|
|
|---|---|---|---|
Fortified PCI-e 4.0 x16 SlotsMSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference: 2 x PCI-e 4.0/3.0 x16 slots* (primary with Steel Armor) *Supports x16/x4 |
M.2 Shield FrozrEven the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance. |
4 x DDR5 Dual Channel (6400+ MHz OC)Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability. *1DPC 1R Max. overclocking frequency 6400 MHz, supports AMD EXPO. |
Wi-Fi 6E & Bluetooth 5.22.5G LAN: A Realtek RTL8125BG 2.5Gbps LAN controller delivers a premium network gaming experience. Wi-Fi 6E: Features an AMD Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology. HD Audio: 7.1-Channel High Definition Audio with Audio Boost. |
| Chipset | AMD B650 |
| CPU SUPPORT |
|
| Memory |
|
| Onboard Graphics |
|
| EXPANSION SLOT | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
| Storage |
2x M.2 slot
|
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB |
|
| LAN | Realtek® 8125BG 2.5G LAN |
| WIRELESS / BLUETOOTH |
|
| Audio |
|
| LED FEATURE | 4x EZ Debug LED |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension | mATX |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Weight | 1 kg |
|---|---|
| Brands |
MSI |
| Product Type |
Gaming |
| Motherboard Size |
mATX |
| Socket |
AM5 |
| Chipset |
B650 |
| Platform |
AMD |
| Motherboard Series |
MSI PRO |
| RAM Type |
DDR5 |
| Warranty |
3 Years |
| EAN / UPC Code |
4711377010160 |
