MSI B850 Gaming Plus WiFi6E AM5 ATX Motherboard for AMD Ryzen 7000/8000/9000 – DDR5, PCIe 5.0, Wi-Fi 6E

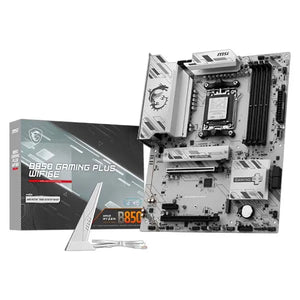

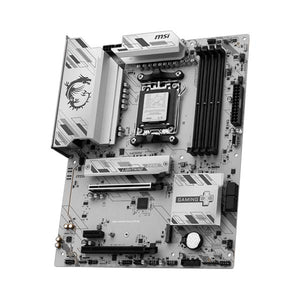

MSI B850 GAMING PLUS WIFI6E AM5 Motherboard
Feature
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 12+2+1 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper PCB
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- High-speed Connectivity: 2.5G LAN with Wi-Fi 6E Solution – The premium solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 5 x4 M.2, Front USB Type-C
- EZ DIY: EZ PCIe Clip II, EZ M.2 Clip II, EZ-Conn Design and EZ Antenna
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
The MSI B850 GAMING PLUS WIFI6E is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring the advanced Wi-Fi 6E, 2.5G LAN, PCIe 5.0 M.2 solution, and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
One Finger for EZ GPU Installation
The new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces.
The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build.
MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.
While overclocking can be overly complex for some, MSI Click BIOS X made it more accessible with multiple one-click overclock features for both processor and memory, allowing users to easily enhance system performance without delving into intricate settings.
GAME BOOST
One-click CPU overclock automatically optimizes your CPU performance, instantly tuning it to the best possible level.
AI BOOST
An intelligent algorithm boosts NPU performance to get the best possible AI performance when you need additional horsepower.
12+2+1 Duet Rail Power System
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, the B850 GAMING PLUS WIFI6E is ready to sustain heavy gaming loadings.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI’s premium network solution provides incredible data transfer speed for demanding users.
| Feature | Specification |
| Chipset | AMD B850 |
| CPU Support | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors, Socket AM5 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Support | DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s, Supports Memory Overclocking and AMD EXPOTM, Dual-Channel mode, Non-ECC, Un-buffered memory, CUDIMM |
| Onboard Graphics | 1x HDMI™ (4K 60Hz), 1x DisplayPort (4K 60Hz) |
| Slots | 2x PCI-E x16, 1x PCI-E x1 |
| Audio | Realtek® ALC897, 7.1-Channel High Definition Audio |
| Storage | 2x M.2 (M.2_1 PCIe 5.0 x4, M.2_2 PCIe 4.0 x4), 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA; Supports RAID 0 and RAID 1 for M.2 NVMe |
| USB Ports | Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C <br> Rear: 4x USB 5Gbps Type-A, 3x USB 10Gbps Type-A, 1x USB 10Gbps Type-C |
| LAN | Realtek® 8125D 2.5G LAN |
| Wireless & Bluetooth | Wi-Fi 6E (2.4/5/6GHz), Bluetooth® 5.3 |
| LED Feature | 4x EZ Debug LED, 1x EZ Memory Detection LED |

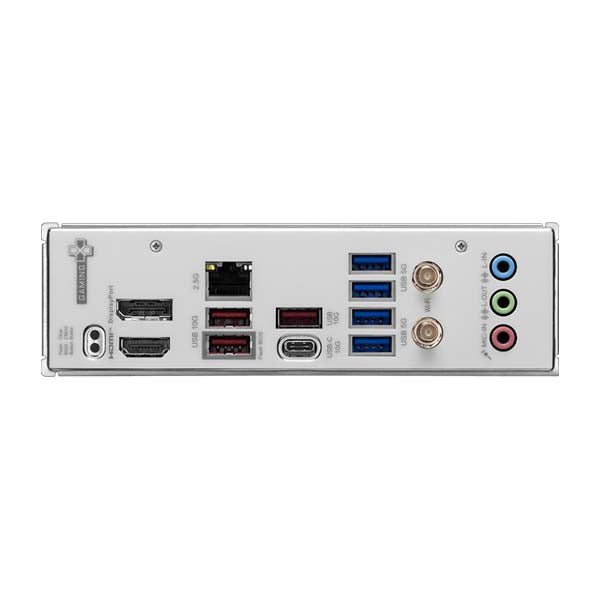

| Back Panel Ports | Clear CMOS Button, DisplayPort 1.4, 2.5G LAN, USB 10Gbps (Type-A), Wi-Fi / Bluetooth, HD Audio Connectors, Flash BIOS Button, HDMI™, USB 10Gbps (Type-C), USB 5Gbps (Type-A) |
| Operating System | Support for Windows® 11 64-bit |
| PCB Info | ATX, 243.84mmx304.8mm |
| Note | Features, price, and specifications are subject to change without notice. Images are for representation only. |
| Weight | 2 kg |
|---|---|
| Product Type |
Normal |
| color |
White |
| Brands |
MSI |
| Motherboard Size |
ATX |
| Memory Series |
DDR5 |
| Platform |
AMD |
| Socket |
AM5 |
| Chipset |
B850 |
| Warranty |
3 Years |
| EAN / UPC Code |
4711377365321 |
