MSI MAG A520M Vector WiFi Micro-ATX Motherboard (AMD AM4, Ryzen 5000/4000G/3000, DDR4, PCIe 3.0, Wi-Fi, 1G LAN)

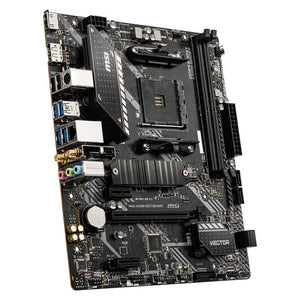

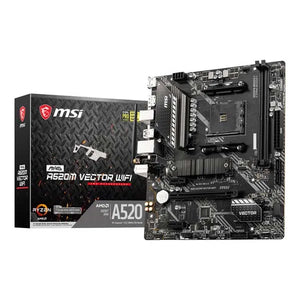

MSI MAG A520M VECTOR WIFI AM4 Micro-ATX Motherboard
Feature
- Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
- Supports DDR4 Memory, up to 4600(OC) MHz
- Extended Heatsink Design: Leading heatsink design, extended for maximum cooling and performance
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster
- Core Boost: With premium layout and digital power design to support more cores and provide better performance
- 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability
- Audio Boost: Reward your ears with studio grade sound quality
- Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface

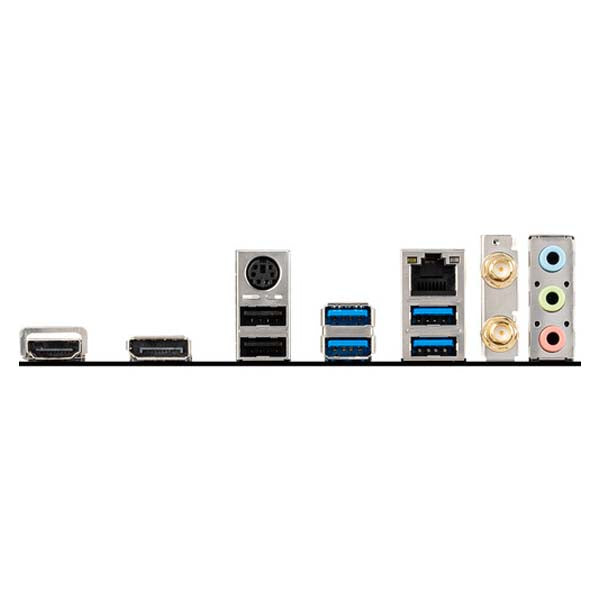

The rear I/O panel features four USB 3.2 Gen 1 and two USB 2.0 Type-A ports. A legacy mouse or keyboard can be connected to the PS/2 port, while displays can be hooked up using the DisplayPort or HDMI outputs. An RJ45 port is also present, supporting Gigabit Ethernet. Two Wi-Fi antenna connectors facilitate Wi-Fi 5 connectivity, while the preinstalled wireless controller further facilitates Bluetooth 4.2. The rear panel also sports three 3.5mm audio jacks. Relying on Realtek audio codecs, this motherboard supports 7.1 Surround Sound. The MAG A520M VECTOR WIFI AM4 Micro-ATX Motherboard is compatible with Windows 10 operating systems.
AMD A520 Chipset
The AMD A520 chipset supports 3rd Gen Ryzen processors using the AM4 socket.
Extended Heatsink
Keep high-end CPUs running at full speed, thanks to the extended PWM heatsink and optimized circuit design.
M.2 Shield FROZR
Part of the motherboard’s heatsink design, the M.2 Shield FROZR ensures smooth SSD performance when temperatures rise.
Fan Control via BIOS and Software
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to four temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
Automatic Fan Detection
MSI fan headers can automatically detect if a fan needs to run in DC or PWM mode, streamlining the fan tuning experience.
4+2+1 Duet Rail Power System
Combining VRM design with Core Boost, this motherboard is designed to tackle heavy gaming loads.
Core Boost
Core Boost technology allows for precise and undistorted current delivery to the CPU. In addition to multi-core CPU support, Core Boost also benefits CPU overclocking.
Game Boost
Enable one-second overclocking with Game Boost, delivering more FPS for smoother gameplay.
Load-Line Calibration
Load-line calibration ensures your CPU voltage remains stable under any load, even with demanding, CPU-heavy performance.
Overvoltage Protection
Overvoltage protection prevents potential short-circuit damage to the CPU and other critical components.
Keep-Out Zone
Motherboard circuitry ensures case standoff keep-out zones are clear, preventing any contact between components and damage to the motherboard.
EZ Debug LED
Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.
2oz Copper PCB
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability during overclocking.
Double ESD Protection
Double ESD protection provides an optimized grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.
Dragon Center
The Dragon Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features for color calibration, live updates, user scenarios, hardware monitoring, fan control, RGB lighting, and product registration.
MSI App Player
Developed under an exclusive partnership with BlueStacks, the MSI App Player is intended to provide a seamless gaming experience between mobile games and the PC platform, utilizing customized features as specific keyboard lighting and better graphics when multitasking.
Isolated Audio Design
Like a dedicated sound card, audio components and circuits are located on a reserved motherboard section and electrically isolated.
Separate Audio Layers
Using separated layers in the PCB, this motherboard ensures accurate sound quality for both left and right audio channels.
USB 3.2 Gen 1
Synonymous with USB 3.1 Gen 1, USB 3.2 Gen 1 features a maximum throughput of 5 Gb/s when used with compatible devices.
| Feature | Specification |
| CPU | |
| Chipset | AMD A520 |
| CPU Socket | AM4 |
| Memory | |
| Memory Slots | 2x 288-Pin |
| Memory Support | DDR4 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600 MT/s |
| Maximum Capacity | 64 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC, ECC (Non-ECC Mode) Unbuffered |
| Storage Expansion | |
| SATA | 4x SATA III |
| Storage Slots | 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 3.0 x4, SATA III) |
| RAID Support | RAID 0, 1, 10 (SATA) |
| Internal I/O | |
| Expansion Slots | 1x PCIe 3.0 x16, 2x PCIe 3.0 x1 |
| USB Headers | 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port), 2x USB 2.0 Header (Supports 4 USB-A Port) |
| Air Cooling | 1x 4-Pin CPU, 1x 4-Pin System |
| Power Connectors | 1x 24-Pin Mainboard, 1x 8-Pin ATX |
| Security | Chassis Intrusion, TPM Module |
| LED Header | 1x RGB |
| Diagnostics | Clear CMOS |
| Legacy | 1x Serial |
| Back Panel I/O | |
| USB | 4x USB-A (USB 3.0 / 3.1/3.2 Gen 1), 2x USB-A (USB 2.0) |
| Display | 1x HDMI 1.4, 1x DisplayPort |
| Audio | 3x 1/8" / 3.5 mm |
| Ethernet / Controller | 1x Realtek RTL8111H Gigabit |
| PS/2 | 1x PS/2 |
| Wi-Fi Antenna | 2x Connector |
| Wireless | |
| Bluetooth | 4.2 |
| Wi-Fi | Wi-Fi 5 (802.11ac) (MU-MIMO) |
| Physical | |
| Form Factor | Micro-ATX |
| Dimensions | 8.3 x 9.6" / 21 x 24.4 cm |
| Software | |
| OS Compatibility | Windows 10 |
| Packaging Info | |
| Package Weight | 2.42 lb |
| Box Dimensions (LxWxH) | 11.1 x 10.7 x 2.7" |
| Warranty | 3-Year Warranty |
| Note | Features, price, and specifications are subject to change without notice. Images are for representation only. |
| Weight | 1 kg |
|---|---|
| Product Type |
Normal |
| color |
Black |
| Brands |
MSI |
| Motherboard Size |
mATX |
| Socket |
AM4 |
| Warranty |
3 Years |
| EAN / UPC Code |
4719072752583 |
