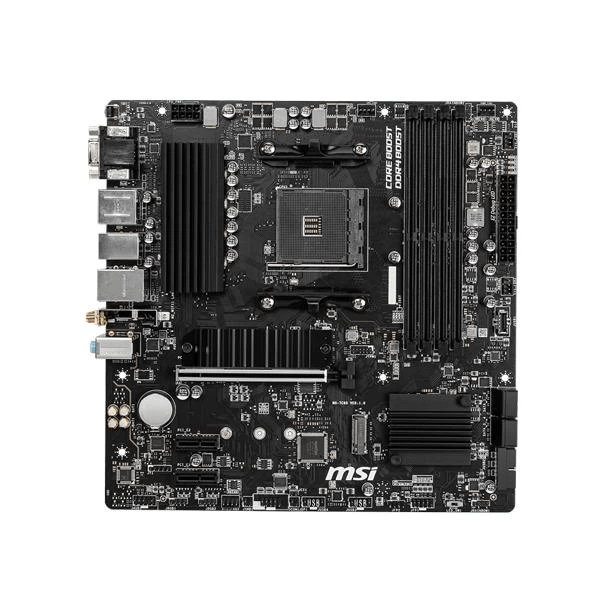

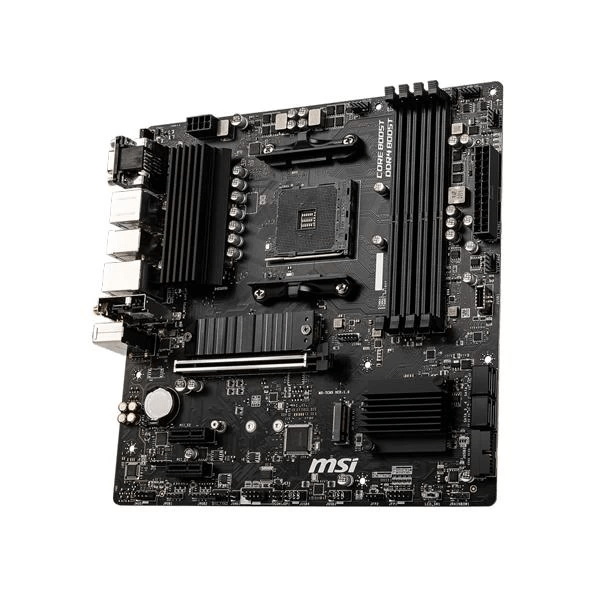

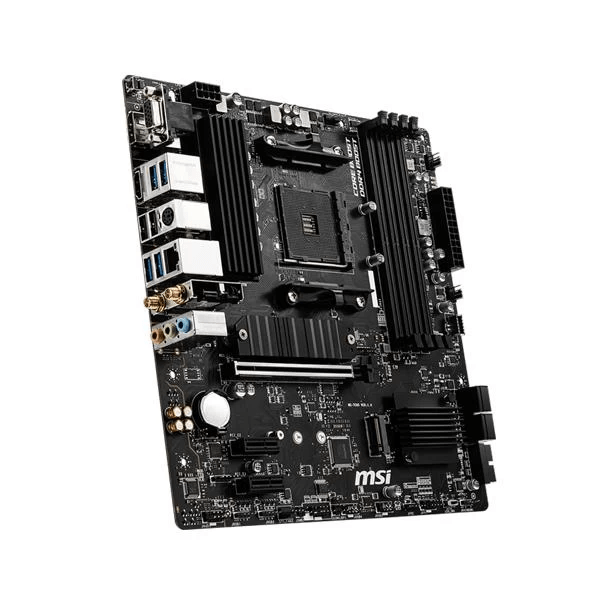

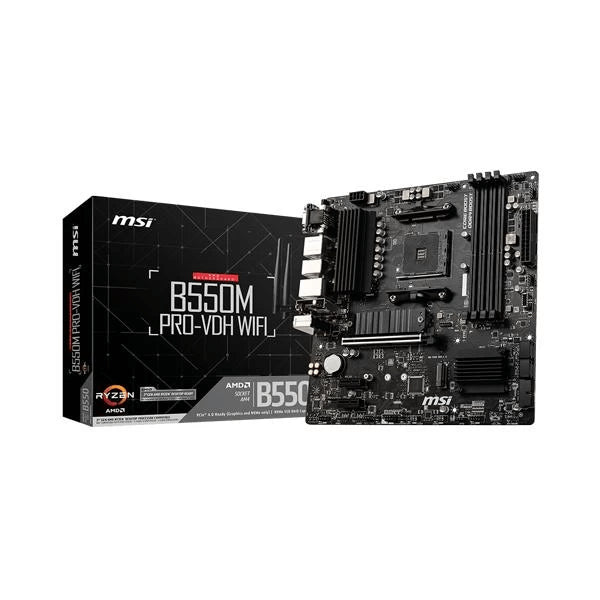

MSI B550M PRO-VDH WiFi AM4 DDR4 Micro-ATX Gaming Motherboard for AMD Ryzen 3000 / 4000G / 5000 Series CPUs

Sale price Rs. 9,385.00

Go kalles this summer with this vintage navy and white striped v-neck t-shirt from the Nike. Perfect for pairing with denim and white kicks for a stylish kalles vibe.

Add to Wishlist
Add to Compare
MSI B550M PRO-VDH WiFi AM4 DDR4 Micro-ATX Gaming Motherboard for AMD Ryzen 3000 / 4000G / 5000 Series CPUs
MSI B550M PRO-VDH WiFi AM4 DDR4 Micro-ATX Gaming Motherboard for AMD Ryzen 3000 / 4000G / 5000 Series CPUs
Sale priceRs. 9,385.00
Availability: In stock
Categories: MotherBoard
MSI B550M PRO-VDH WiFi AM4 DDR4 Micro-ATX Gaming Motherboard for AMD Ryzen 3000 / 4000G / 5000 Series CPUs

MSI B550M PRO-VDH WiFi AM4 DDR4 Micro-ATX Gaming Motherboard for AMD Ryzen 3000 / 4000G / 5000 Series CPUs

Rs. 9,385.00

Msi B550M PRO-VDH WIFI Motherboard provide not only optimized professional workflows but also less troubleshooting and longevity.

Important Notice :

  • BIOS Update May Be Required With This Motherboard in order to support the Latest Generation Ryzen Processor (Upto 5th Gen Ryzen).
  • The Maximum Supported Memory Speed Varies with The Generation of Ryzen Processor You are Using With it.
  • For Additional Information Regarding Compatibility, Please Check Within the Manufacturers Website

Features

  • MSI B550M PRO-VDH WIFI Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
  • B550M PRO-VDH WIFI Supports DDR4 Memory, up to 4400(OC) MHz
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
  • Powerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost
  • Audio Boost: Reward your ears with studio grade sound quality
  • Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.
Model B550M PRO-VDH WIFI
CPU Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Chipset AMD B550 Chipset
Memory
  • 4x DDR4 memory slots, support up to 128GB
  • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
  • Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
  • 1DPC 1R max speed 4400 MHZ
  • 1DPC 2R max speed 3733 MHZ
  • 2DPC 1R max speed 3866 MHZ
  • 2DPC 2R max speed 3466 MHZ
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory
  • Supports un-buffered memory
Expansion Slot
  • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
  • 2x PCIe 3.0 x1 slots
Onboard Graphics
  • 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
  • 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
  • 1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz Support HDCP 1.4 & 2.3
  • Maximum shared memory of 16 GB
Storage AMD B550 Chipset
  • 4x SATA 6Gb/s ports
  • 2x M.2 slots (Key M)
  • M2_1 slot (from AMD Processor)
  • Supports PCIe 4.0/ 3.0 x4 1
  • Supports SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
  • M2_2 slot (from AMD B550 chipset)
  • Supports PCIe 3.0x4
  • Supports 2242/ 2260/ 2280 storage devices
RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB AMD B550 Chipset
  • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
  • 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio Realtek® ALC892/ALC897 Codec
  • 7.1-Channel High Definition Audio
LAN 1x Realtek® 8111HN Gigabit LAN controller
Wireless LAN & Bluetooth Wi-Fi AC
  • Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed.
  • Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional
  • 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 3x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Serial port connector
  • 1x Chassis Intrusion connector
  • 2x 4-pin RGB LED connectors
  • 2x 3-pin RAINBOW LED connectors
  • 1xTPM module connector
  • 1x Clear CMOS jumper

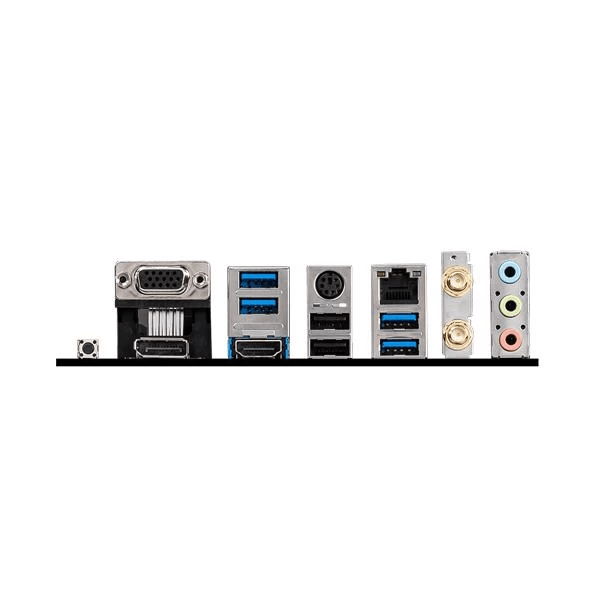

Back panel ports
  • VGA
  • USB 3.2 Gen 1 5Gbps Type-A
  • Keyboard / Mouse
  • LAN
  • Flash BIOS Button
  • DisplayPort
  • HDMI™
  • USB 2.0
  • USB 3.2 Gen 1 5Gbps Type-A
  • Wi-Fi Antenna connectors
  • 3x Audio jacks
Dimensions Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
MOUNTING 8 mounting holes
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
Weight 1 kg
Dimensions 24 × 3 × 22 cm
Brands

MSI
Chipset

B550
Socket

AM4
Platform

AMD
Motherboard Series

MSI PRO
EAN / UPC Code

4719072733698
Motherboard Size

mATX
RAM Type

DDR4
Warranty

3 Years
