MSI MPG B550 Gaming Plus AM4 ATX DDR4 Gaming Motherboard for AMD Ryzen 3000 / 4000G / 5000 Series

Sale price Rs. 13,120.00

Go kalles this summer with this vintage navy and white striped v-neck t-shirt from the Nike. Perfect for pairing with denim and white kicks for a stylish kalles vibe.

Add to Wishlist
Add to Compare
MSI MPG B550 Gaming Plus AM4 ATX DDR4 Gaming Motherboard for AMD Ryzen 3000 / 4000G / 5000 Series
MSI MPG B550 Gaming Plus AM4 ATX DDR4 Gaming Motherboard for AMD Ryzen 3000 / 4000G / 5000 Series
Sale priceRs. 13,120.00
Availability: In stock
Categories: MotherBoard
MSI MPG B550 Gaming Plus AM4 ATX DDR4 Gaming Motherboard for AMD Ryzen 3000 / 4000G / 5000 Series

MSI MPG B550 Gaming Plus AM4 ATX DDR4 Gaming Motherboard for AMD Ryzen 3000 / 4000G / 5000 Series

Rs. 13,120.00

Msi MPG B550 GAMING PLUS AMD Am4 Ddr4 M.2 USB 3.2 Gen 2 Hdmi ATX Motherboard AMD Ryzen 5000 Series Desktop Processors

Important Notice :

  • BIOS Update May Be Required With This Motherboard in order to support the Latest Generation Ryzen Processor (Upto 5th Gen Ryzen).
  • The Maximum Supported Memory Speed Varies with The Generation of Ryzen Processor You are Using With it.
  • For Additional Information Regarding Compatibility, Please Check Within the Manufacturers Website

bnb

MSI is the most trusted name in gaming and eSports. We’ve dedicated countless hours and committed numerous resources to support the world’s most aspiring and best gamers and use their knowledge and expertise in our products in return. MSI integrated all gamer’s aspirational functions in its gaming rigs and pushing the performance beyond limits.

Features

  • MSI MPG B550 GAMING PLUS Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
  • MPG B550 GAMING PLUS Supports DDR4 Memory, up to 4400(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
  • Enhanced Power Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, DDR4 Boost
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
  • Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
  • Audio Boost: Reward your ears with studio grade sound quality

MPG B550 GAMING PLUS

Advancing Ascension

  • Experience new generation of the MPG B550 GAMING PLUS motherboard powered by 3rd Gen AMD 3000 series AM4 processors. Outperform your system’s capacity with Lightning Gen 4 solution. Smart software tools DDR4 Boost and Core Boost, created to keep you one step ahead of the competition. Extended Heatsink Design, 7W/mK level thermal & choke pad with 2oz thickened copper make your PC staying cool, silent and reliable.
  • Designed for 3rd Gen AMD Ryzen processors with Lightning Gen 4 M.2, PCIe 4.0, USB 3.2 Gen 2
  • Mystic Light provides a complete function to control the RGB light all around the system, supporting both RGB and RAINBOW LED strip with 16.8 million colors / 29 effects
  • Larger Aluminum Cover improves VRM heat dissipation and ensures the power delivery system can sustain even high-end processors running at full load.
  • Front USB Type-C allows gamers to be compatible with the latest PC chassis and perfect for external drives and other mobile devices.
CPU Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Chipset AMD B550 Chipset
Memory
  • 4x DDR4 memory slots, support up to 128GB
    • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
    • Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733 / 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
      • 1DPC 1R max speed 4400 MHz
      • 1DPC 2R max speed 3866 MHz
      • 2DPC 1R max speed 4000 MHz
      • 2DPC 2R max speed 3600 MHz
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
Expansion Slot
  • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
  • 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed
  • 2x PCIe 3.0 x1 slots
  1. The supported specification depends on installed processor.
  2. When installing PCIe SSD in M.2_2, PCI_E3 slot will be unavailable.
Multi-GPU Supports 2-Way AMD CrossFire™ Technology
Onboard Graphics
  • 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz
  • 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
  • Maximum shared memory of 16 GB
  1. Available for the processor with integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.
Storage AMD B550 Chipset
  • 6x SATA 6Gb/s ports
  • 2x M.2 slots (Key M)
    • M2_1 slot (from AMD Processor)
      • Supports PCIe 4.0/ 3.0 x4
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 slot (from AMD B550 chipset)
      • Supports PCIe 3.0x4
      • Supports 2242/ 2260/ 2280 storage devices
  1. The supported specification depends on installed processor.
RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB AMD B550 Chipset
  • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
  • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
  • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio Realtek® ALC892 Codec
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN 1x Realtek® 8111H Gigabit LAN controller
LED Features
  • 1x EZ LED Control switch
  • 4x EZ Debug LED
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 1xTPM module connector
  • 1x Clear CMOS jumper

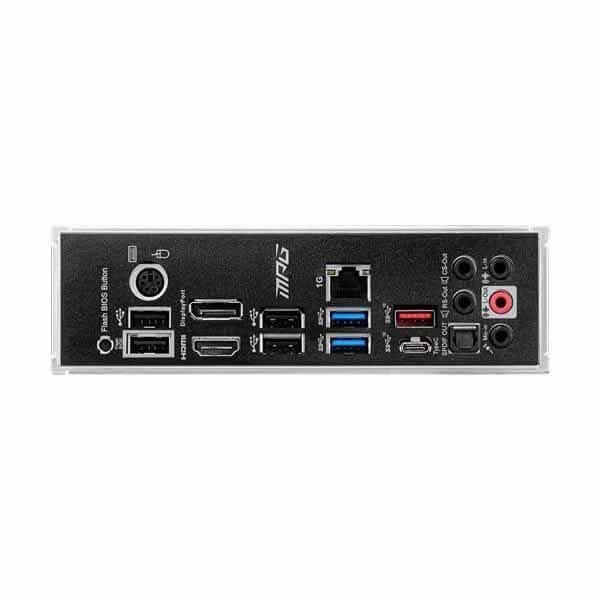

Back panel ports
  • PS/2 Combo Port
  • DisplayPort
  • LAN Port
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • HD Audio Connectors
  • Flash BIOS Button
  • USB 2.0
  • HDMI
  • USB 2.0
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • USB 3.2 Gen 2 10Gbps (Type-C)
  • Optical S/PDIF OUT
Dimensions
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Mounting 9 mounting holes
I/O Controller NUVOTON NCT6687-R Controller Chip
Hardware Monitor
  • CPU/ System/ Chipset temperature detection
  • CPU/ System/ Pump fan speed detection
  • CPU/ System/ Pump fan speed control
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Weight 1 kg
Dimensions 31 × 25 × 3 cm
Brands

MSI
Chipset

B550
Motherboard Size

ATX
Socket

AM4
Platform

AMD
Motherboard Series

MSI MPG
EAN / UPC Code

4719072731885
RAM Type

DDR4
Warranty

3 Years
