MSI B550M PRO AM4 DDR4 Micro-ATX Motherboard for AMD Ryzen 3000 4000G 5000 Series CPUs

Sale price Rs. 9,940.00

Go kalles this summer with this vintage navy and white striped v-neck t-shirt from the Nike. Perfect for pairing with denim and white kicks for a stylish kalles vibe.

Add to Wishlist
Add to Compare
MSI B550M PRO AM4 DDR4 Micro-ATX Motherboard for AMD Ryzen 3000 4000G 5000 Series CPUs
MSI B550M PRO AM4 DDR4 Micro-ATX Motherboard for AMD Ryzen 3000 4000G 5000 Series CPUs
Sale priceRs. 9,940.00
Availability: In stock
Categories: MotherBoard
MSI B550M PRO AM4 DDR4 Micro-ATX Motherboard for AMD Ryzen 3000 4000G 5000 Series CPUs

MSI B550M PRO AM4 DDR4 Micro-ATX Motherboard for AMD Ryzen 3000 4000G 5000 Series CPUs

Rs. 9,940.00

AMD MSI B550M Pro (Ryzen AM4) micro-ATX motherboard with M.2 support, MSI B550M-PRO is equipped with DDR4 4600MHz, M.2 Slot, USB 3.2 Gen 1 ports Type C, SATA 6 Gbps

Important Notice :

  • BIOS Update May Be Required With This Motherboard in order to support the Latest Generation Ryzen Processor (Upto 5th Gen Ryzen).
  • The Maximum Supported Memory Speed Varies with The Generation of Ryzen Processor You are Using With it.
  • For Additional Information Regarding Compatibility, Please Check Within the Manufacturers Website

Features

  • MSI B550M Pro Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
  • MSI B550M Pro Supports DDR4 Memory, up to 4600(OC) MHz
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability
  • 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability
  • Audio Boost: Reward your ears with studio grade sound quality
  • Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface
CPU Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Chipset AMD B550 Chipset
Memory
  • 2x DDR4 memory slots, support up to 64GB
    • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
    • Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
      • 1DPC 1R max speed 4600 MHz
      • 1DPC 2R max speed 3866 MHz
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
Expansion Slot
  • 1x PCIe x16 slot (PCI_E2)
    • B550M PRO supports PCIe 4.0/3.0
  • 2x PCIe 3.0 x1 slots
  1. The supported specification depends on installed processor.
Onboard Graphics
  • 1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
  • 1x HDMI2.1, supports a maximum resolution of 4096x2160@60Hz
  • 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
  • Maximum shared memory of 2048 MB
  1. Graphics specifications may vary depending on the CPU installed.
  2. Available for the processor with integrated graphics.
Storage AMD B550 Chipset
  • 4x SATA 6Gb/s ports
  • 1x M.2 slot (Key M) (from AMD Processor)
    • B550M PRO Supports PCIe 4.0/ 3.0 x4
    • Supports SATA 6Gb/s
    • Supports 2242/ 2260/ 2280 storage devices
  1. The supported specification depends on installed processor.
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB AMD B550 Chipset
  • 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
  • 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio Realtek® ALC892/ALC897 Codec
  • 7.1-Channel High Definition Audio
LAN 1x Realtek® RTL8111H LAN controller
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 1x Serial port connector
  • 1x M.2 slot (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x 4-pin RGB LED connector
  • 1x 3-pin RAINBOW LED connector
  • 1x TPM module connector
  • 1x Clear CMOS jumpe

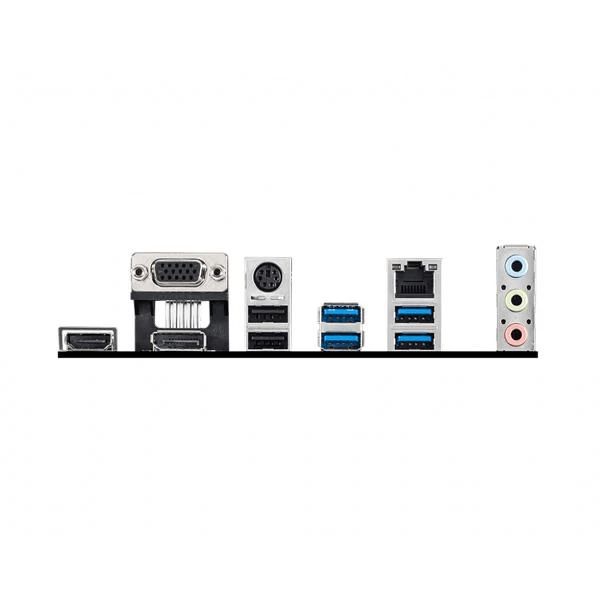

Back panel ports
  1. VGA
  2. Keyboard / Mouse
  3. LAN port
  4. HDMI
  5. DisplayPort
  6. USB 2.0 Ports
  7. USB 3.2 Gen 1 5Gbps Type-A
  8. USB 3.2 Gen 1 5Gbps Type-A
  9. Audio Connectors
Dimensions
  • M-ATX Form Factor
  • 9.6 in. x 8.3 in. (24.4 cm x 21 cm)
MOUNTING 6 mounting holes
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Weight 1 kg
Dimensions 24 × 3 × 22 cm
Brands

MSI
Chipset

B550
color

Black
Product Type

Normal
Socket

AM4
Platform

AMD
Motherboard Series

MSI PRO
EAN / UPC Code

4719072752613
Motherboard Size

mATX
RAM Type

DDR4
Warranty

3 Years
