MSI PRO Z690-P LGA1700 ATX DDR4 Motherboard for Intel 12th 13th 14th Gen Processors
MSI PRO Z690-P DDR4 Intel Motherboard
Features:

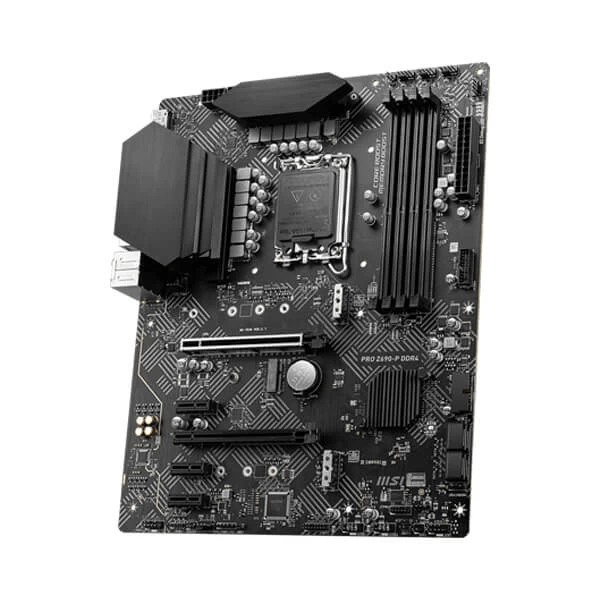

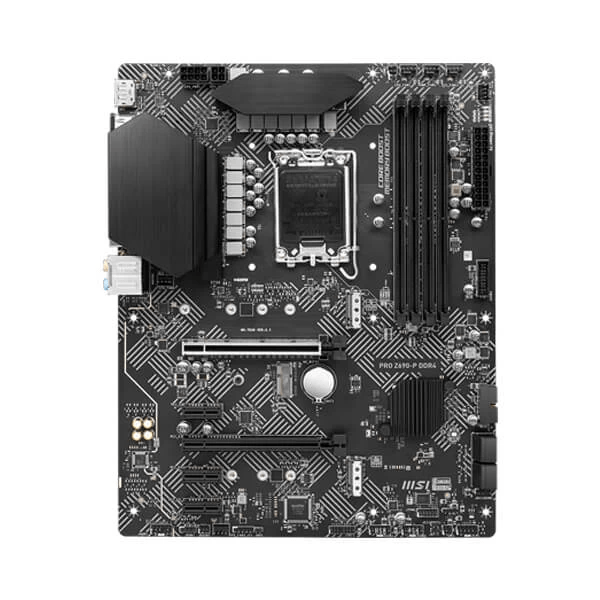

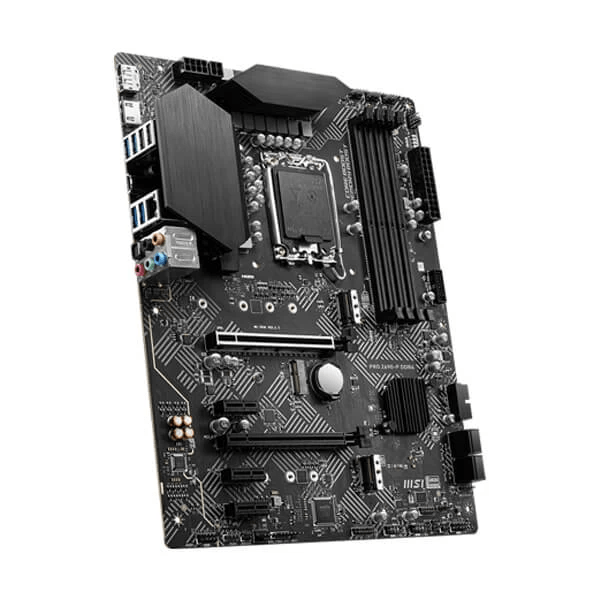

MSI PRO Z690-P DDR4 Motherboard
- MSI Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 5000+(OC) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance.
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
- Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2×2
- Premium Thermal Solution: Extended Heatsink Design and MOSFET thermal pads rated for 7W/mk are built for high performance system and non-stop works
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Audio Boost: Reward your ears with studio grade sound quality
- High Quality PCB: 6-layer PCB and server grade level material
- Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire™
MSI Business & Productivity
MSI Business & Productivity specializes in home & commercial office computing hardware with a design emphasis on productivity and user comfort.
For business professionals searching for elegant, world class solutions engineered with cutting edge components, premium reliability and refined aesthetics, MSI Business & Productivity offers a broad array of innovative products to ensure a competitive working environment.

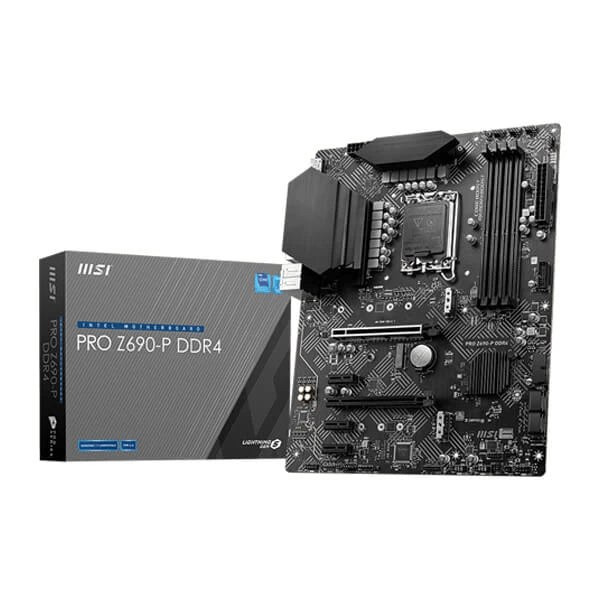

PRO Z690-P DDR4
Business Elegance
For professionals looking for value-centric 12th Gen Intel Core performance with high-bandwidth PCIe 5.0 x16 graphics card architecture, improved DDR4 memory, and M.2 Gen4 storage options, the MSI PRO Z690-P DDR epitomizes business elegance.
- Supports Intel Core 12th Gen Processors (LGA 1700)
- 4 x DDR4 DIMMs, Memory Boost (5000MHz OC)
- 2 x M.2 Gen4 Slots
- 1 x PCI-e 5.0 x16 (128GB/s), 1 x PCI-e 3.0 x16 Graphic Card Slots
- 2.5G LAN
- USB 3.2 Gen 2×2 Type-C (20Gbps)
Z690 Chipset, Smart Cooling, DDR4 Memory Boost
|
|
|
|
|---|---|---|
Supports Intel Core 12th Gen ProcessorsThe PRO Z690-P DDR4 motherboard supports 12th Gen Intel Core processors.
|
Smart CoolingVRM Cooling: Features an extended heatsink for improved thermal dissipation. Frozr AI Cooling: Automatically adjusts system cooling based on CPU & GPU temperatures. A 6-layer server-grade PCB with 2oz of thickened copper improves performance & system stability. |
4 x DDR4 Dual Channel (5000 MHz Overclocked*)Memory Boost: A fully-isolated circuit delivers pure DDR4 data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for improved memory speed and stability. *1DPC 1R Max. overclocking frequency 5000 MHz, supports Intel XMP. |
| Processor | Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1700 Please go to msi.com to get the newest support status as new processors are released. |
| Chipset | Intel® Z690 Chipset |
| Memory | 4x DDR4 memory slots, support up to 128GB 1 Supports 2133/ 2666/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5000+ MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Please refer www.msi.com for more information on compatible memory |
| Expansion Slot | 2x PCIe x16 slots PCI_E1 slot (From CPU) Support PCIe 5.0 x16 PCI_E3 (From Z690 chipset) Support PCIe 3.0 x4 3x PCIe 3.0 x1 slots (Fom Z690 chipset) |
| Onboard Graphics | 1x HDMI 1.4b with HDR port, supports a maximum resolution of 4K 30Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Multi-GPU | Supports AMD CrossFire™ Technology |
| Storage | 4x SATA 6Gb/s ports (From Z690 chipset) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (From Z690 chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Optane™ Memory |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB | Intel® Z690 Chipset 8x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel and 4 ports available through the internal USB connectors) 6x USB 2.0 ports (2 Type-A port on the back panel and 4 ports available through the internal USB connectors) 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel |
| Audio | Realtek®ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN | 1x Realtek® RTL8125BG 2.5Gbps LAN controller |
| Internal connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Clear CMOS jumper 1x TBT connector (Supports RTD3) |
| LED FEATURE | 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 4x EZ Debug LED |

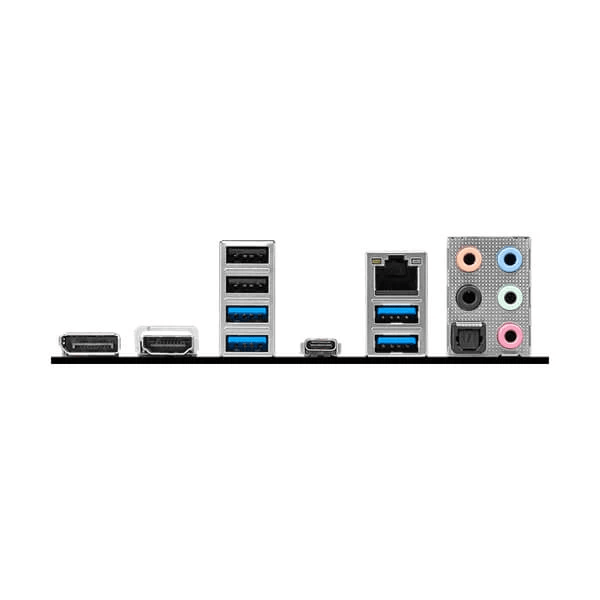

| Back panel ports | DisplayPort HDMI USB 2.0 LAN port Audio Connectors USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C USB 3.2 Gen 1 5Gbps Type-A Optical S/PDIF Out |
| Dimensions | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Weight | 1 kg |
|---|---|
| Dimensions | 30 × 24 × 6 cm |
| Brands |
MSI |
| Chipset |
Z690 |
| Motherboard Size |
ATX |
| Socket |
LGA 1700 |
| Platform |
Intel |
| Motherboard Series |
MSI PRO |
| EAN / UPC Code |
4719072902940 |
| RAM Type |
DDR4 |
| Warranty |
3 Years |
